FOR-A USF-1013MUX 3G/HD/SD-SDI Digital Audio Multiplexer Card

FOR-A Virtual Production

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Rate SDI Video Support: Supports auto-sensing 3G, HD, and SD-SDI with reclocked output passthrough.
8-Channel AES/EBU Embedding: Embeds up to 4 AES/EBU pairs (8 channels) into SDI video streams.
Integrated Sample Rate Conversion: Built-in SRC enables reliable embedding of asynchronous AES/EBU audio.
Independent Gain Processing: Provides separate input and output gain adjustment across audio channels.
Selectable LTC / AES Input: Auxiliary BNC input supports LTC or AES/EBU channels 7/8.
USF Frame & SNMP Integration: Compatible with FOR-A USF-105AS and USF-212BS frames with network health monitoring.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

3G/HD/SD-SDI Audio Embedding Engine

The FOR-A USF-1013MUX is a modular digital audio multiplexer card designed for installation in FOR-A USF series universal system frames. Supporting standard 3G-SDI, HD-SDI, and SD-SDI video rates, the module embeds up to 8 channels (4 pairs) of external AES/EBU digital audio into an incoming SDI signal for streamlined master control and live broadcast distribution.

Asynchronous Signal Handling & Audio Control

Equipped with built-in Sample Rate Converters (SRC) on all AES/EBU inputs, the USF-1013MUX multiplexes asynchronous digital audio sources without timing errors or buffer overflows. The card features onboard digital processing for audio channel gain adjustments, alongside an auxiliary BNC connection that can be toggled via software to receive either standard SMPTE Longitudinal Timecode (LTC) or additional AES/EBU audio (channels 7/8).

Modular Integration & Centralized Control

Engineered for high-density broadcast environments, the module hot-swaps into 1RU (USF-105AS) or 2RU (USF-212BS) frame chassis with redundant power routing. System status, signal locks, and module parameters can be monitored remotely using SNMP v2c protocols or through the host frame’s network interface.

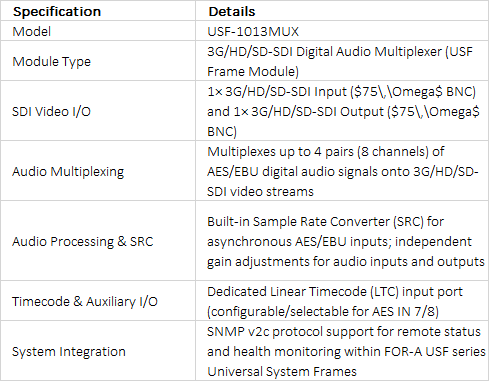

Technical Specifications +

technical specifications
