FOR-A USF-1013MUX 3G/HD/SD-SDI Digital Audio Multiplexer Module

FOR-A Modules

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

8-Channel AES/EBU Embedding: Embeds 4 AES/EBU pairs into 3G/HD/SD-SDI streams.
Sample Rate Conversion: Built-in SRC synchronizes asynchronous AES/EBU sources.
Gain & Level Control: Provides precise input and output audio adjustment.
LTC / AES Input: Dedicated LTC input can alternatively support AES channels 7/8.
SDI Pass-Through: 1 SDI input and 1 output for inline embedding.
SNMP Monitoring: Enables remote status, audio level, and diagnostic monitoring.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Broadcast 3G/HD/SD-SDI Digital Audio Embedding

The FOR-A USF-1013MUX is a high-performance digital audio multiplexer (embedder) card engineered for installation in FOR-A USF series universal system mainframes. Built for master control rooms, post-production suites, and live OB trucks, the module integrates external digital audio feeds into 3G-SDI, HD-SDI, or SD-SDI video streams, streamlining signal distribution and cable routing across facility workflows.

Comprehensive Audio Processing & Timecode Integration

Equipped to handle up to 8 channels (4 AES/EBU pairs) of digital audio, the USF-1013MUX features an onboard Sample Rate Converter (SRC) on its AES/EBU inputs to automatically lock asynchronous digital audio to the SDI video clock. Operators benefit from gain control on audio inputs and outputs for precise signal level matching. Additionally, the card features a versatile input port selectable between LTC timecode insertion or AES input channels 7/8.

Compact Mainframe Integration & Remote Control

Designed for high-density deployment, the USF-1013MUX fits cleanly into FOR-A USF-212BS and USF-105AS modular enclosures. System engineers can track card operational status, signal presence, and board diagnostics remotely across facility management networks via standard SNMP integration.

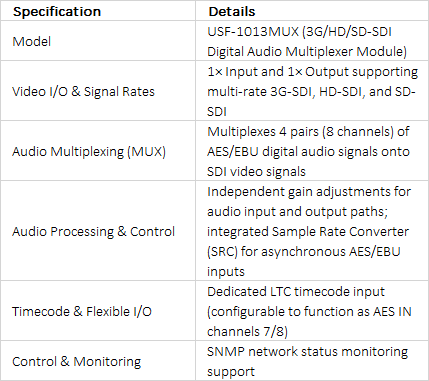

Technical Specifications +

technical specifications
