FOR-A USF-105DDA-12GA 12G-SDI 1-in 5-out Digital Video Distribution Amplifier Module

FOR-A Modules

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

5-Output Distribution: Splits 1 SDI input into 5 re-clocked outputs.
Multi-Rate SDI: Supports 12G, 3G, HD, SD-SDI, and DVB-ASI.
Equalization & Re-clocking: Maintains signal quality over long cable runs.
High-Density: Supports up to 12 modules in 2RU or 5 in 1RU frames.
SNMP Monitoring: Enables remote status and diagnostic monitoring.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Compact 12G-SDI Video Distribution

The FOR-A USF-105DDA-12GA is a compact, multi-rate digital video distribution amplifier module engineered for installation in FOR-A USF series universal system mainframes. Built for master control suites, production trucks, and digital sign distribution, the module accepts 1 single SDI video feed and distributes it to 5 isolated outputs without signal degradation or loss of quality.

Universal Multi-Rate & DVB-ASI Compatibility

Designed to handle modern high-bandwidth production requirements as well as legacy distribution feeds, the USF-105DDA-12GA automatically detects and locks onto 12G-SDI, 3G-SDI, HD-SDI, SD-SDI, and DVB-ASI (270 Mbps) signals. Its multi-format architecture makes it an ideal signal-splitter utility across mixed-resolution broadcast facilities.

Signal Conditioning & System Monitoring

To maintain peak signal performance across complex routing paths, the USF-105DDA-12GA features onboard cable equalization and precision re-clocking. These features active clean up jitter and compensate for signal loss over coax runs. Operating within USF mainframes, card health and operational status can be monitored remotely using facility SNMP management tools.

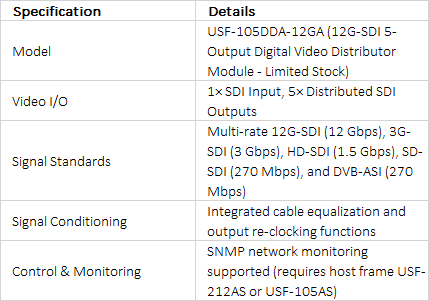

Technical Specifications +

technical specifications
