FOR-A USF-106DC-12G 12G-SDI 4K to HD Down Converter Module

FOR-A Modules

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

4K UHD Downconversion: Converts 4K to 1080p, 1080i, or 720p HD.
12G/3G-SDI Input: Supports 12G-SDI and Quad-Link 3G-SDI 2SI/SQD.
HDR to SDR: Converts HLG/PQ/BT.2020 HDR to BT.709 SDR.
Color Processing: Ensures accurate color and contrast after conversion.
Flexible Sync: Supports Frame, Line, AVDL, and Minimum Line modes.
16-Channel Audio & SNMP: Supports embedded audio, web/GUI control, and SNMP monitoring.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Dedicated 4K UHD to HD Broadcast Downconversion

The FOR-A USF-106DC-12G is a specialized video downconverter card engineered for installation in FOR-A USF series universal system mainframes. Built specifically to bridge 4K UHD live production environments with standard HD monitoring, recording, and broadcast distribution chains, the module converts Single-Link 12G-SDI or Quad-Link 3G-SDI (2SI/SQD) 4K feeds into pristine 1080p/1080i HD output signals.

Dynamic Range & Color Space Mapping

Designed to maintain visual fidelity during live mixed-format productions, the USF-106DC-12G features integrated High Dynamic Range (HDR) conversion. The onboard color processing circuit translates incoming wide color gamut signals (BT.2020) and high dynamic range content (HLG/PQ) into standard dynamic range (BT.709) HD video, eliminating blown-out highlights or dull colors on legacy standard display monitors.

Low-Latency Synchronization & Monitoring

To meet tight broadcast timing requirements, the module provides four distinct sync modes: Frame Sync, Line Sync, AVDL, and Line (Min.). Passing up to 16 channels of embedded audio, the card integrates cleanly into master control suites and live production trucks. System engineers can monitor unit status and configure parameters remotely using a browser-based web server, dedicated software GUI, or network SNMP protocols.

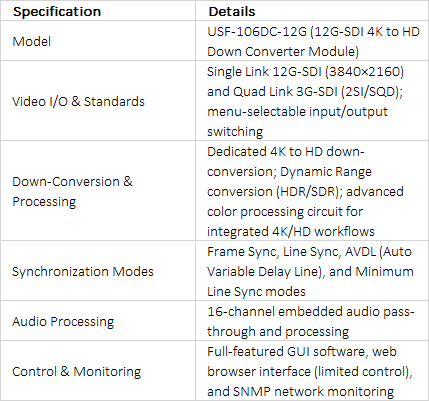

Technical Specifications +

technical specifications
