FOR-A USF-1100VEA 1-in 10-out Analog Video & Sync Distribution Amplifier Module

FOR-A Modules

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

10-Output Distribution: Provides 10 isolated, amplified outputs from one video/genlock input.
Cable Equalization: Compensates for high-frequency loss over long coaxial runs.
Genlock & Video: Supports Black Burst, Tri-Level Sync, NTSC, and PAL signals.
Looping Input: Enables pass-through for daisy-chaining sources.
Remote Management: Browser control with optional SNMP monitoring.
Modular Design: Supports USF-212BS and USF-105AS mainframes.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Analog Video & Sync Distribution

The FOR-A USF-1100VEA is a high-density 10-output analog video distribution amplifier card engineered for installation in FOR-A USF series universal system mainframes. Designed specifically for master control rooms, production studios, and OB vans, the module splits a single analog source into 10 isolated, high-grade output signals without signal loss or ground loop interference.

Genlock Sync Reference & Cable Compensation

Ideally suited for facility reference clock distribution, the USF-1100VEA delivers precise, low-jitter distribution of Black Burst (BB) and Tri-Level Sync signals across large broadcast facilities. To maintain signal sharpness over extended coax lines, the card incorporates frequency cable equalization to restore lost high-frequency details.

Passive Looping & Network Management

The module includes a passive pass-through input port, allowing engineers to loop reference signals to adjacent equipment or mainframes without consuming an active output. Operators can manage board parameters and monitor operational status remotely using an embedded web browser GUI or through SNMP network integration within compatible USF enclosures.

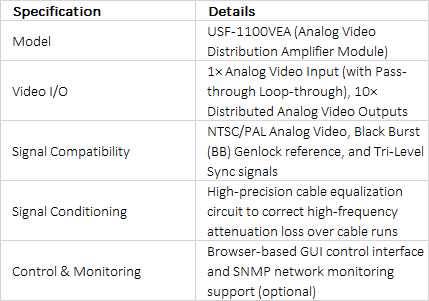

Technical Specifications +

technical specifications
