FOR-A USF-204ADAC 2-Channel Digital-to-Analog Audio Converter Module

FOR-A Modules

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

D/A Audio Conversion: Converts 2 AES/EBU channels into 4 balanced analog outputs.
Digital Headroom: Supports selectable -18/-20 dBFS reference levels.
Analog Output Levels: Selectable -10, 0, +4, or +8 dBu output levels.
Silence Detection: Adjustable 1–10 second threshold for signal dropout monitoring.
SNMP Monitoring: Provides remote signal status and diagnostic monitoring.
Modular Design: Hot-swappable card for USF-212BS and USF-105AS mainframes.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Broadcast Digital-to-Analog Audio Decoding

The FOR-A USF-204ADAC is a precision digital-to-analog audio converter card engineered for installation in FOR-A USF series universal system mainframes. Built for broadcast master control rooms, post-production suites, and live OB trucks interfacing digital audio backbones with analog equipment, the card decodes 2 channels of AES/EBU digital audio into 4 balanced analog line-level outputs.

Flexible Level Matching & Signal Calibration

Designed to streamline signal level calibration across varying studio standards, the USF-204ADAC provides flexible headroom and gain settings. Operators can adjust the digital reference level between -18 dBFS and -20 dBFS while matching downstream analog gear with selectable output levels of -10, 0, +4, or +8 dBu.

Signal Monitoring & Facility Diagnostics

To safeguard broadcast signal integrity, the USF-204ADAC includes customizable audio silence period detection ranging from 1 to 10 seconds. When integrated into USF modular mainframes, network administrators can track signal states, board health, and error alerts remotely via standard SNMP network management systems.

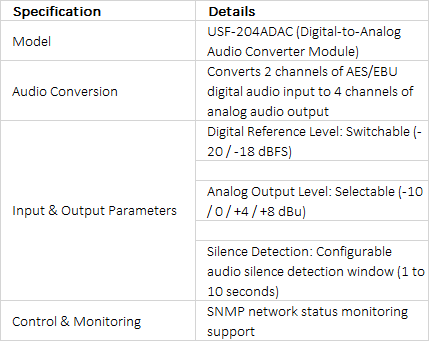

Technical Specifications +

technical specifications
