FOR-A

FOR-A USF-80SDICS 3G/HD/SD-SDI Modular Changeover Switcher Card

FOR-A Changeover Switchers

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Automatic Failover: Switches to the backup SDI source when errors are detected.
Video & Audio Monitoring: Detects CRC errors, sync loss, freeze, black video, mute, and signal loss.
Auto Delay Correction: Aligns input timing using signal comparison or LTC/VITC timecode.
Built-In Frame Synchronizer: Enables smooth switching between asynchronous sources.
Power-Failure Bypass: Maintains signal passthrough during power loss or module removal.
Multi-Format & Web Control: Supports 3G/HD/SD-SDI with web-based configuration and monitoring.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Reliable Modular SDI Redundancy

The FOR-A USF-80SDICS is a high-reliability SDI changeover switcher card designed for installation in FOR-A USF-105AS, USF-212AS, and USF-212BS modular mainframes. Built for master control rooms, playout automation lines, and OB vans, the module continuously monitors two SDI input feeds (Main and Backup) and seamlessly switches to the healthy source whenever a signal failure is detected.

Intelligent Freeze, Black & Audio Error Analysis

Beyond basic signal loss detection, the USF-80SDICS performs deep stream analysis. It active monitors for CRC errors, timing sync loss, video freeze frames, sustained black video, and audio muting. Operators can set the card to switch automatically, semi-automatically, or manually depending on operational preferences.

Integrated Delay Alignment & Frame Sync

To ensure seamless switching without image rolls or screen tears, the USF-80SDICS incorporates built-in frame synchronization and delay alignment tools. The card can automatically align timing differences between inputs by comparing video frames or tracking LTC/VITC timecode, with manual adjustment up to 21 frames. Passthrough relay bypass hardware guarantees signal continuity even if the mainframe loses power.

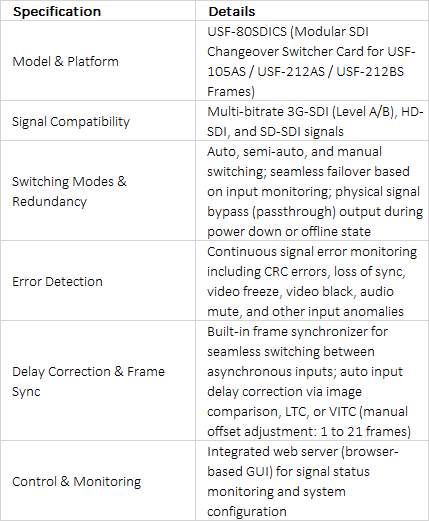

Technical Specifications +

technical specifications
