Overview

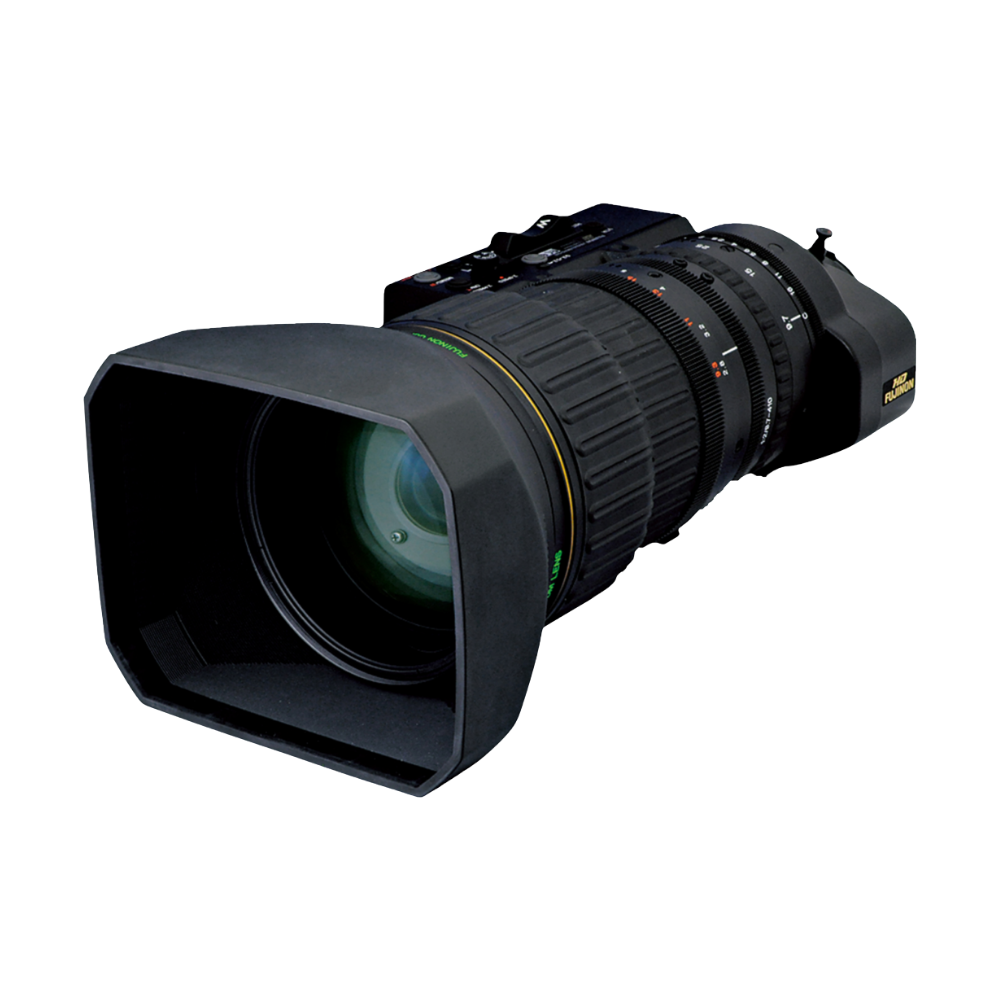

The Fujinon HA42x13.5BERD-U48 is an HD Premier Series telephoto broadcast zoom lens designed for sports broadcasting, live production, OB workflows, studio pedestal use, and long-range field acquisition. It features a 42x zoom ratio with a 13.5-570mm focal range and an integrated 2x extender that expands reach to 27-1140mm.

Professional Image Quality

Designed for 2/3-inch broadcast camera systems, the lens delivers HD-compatible optical performance with strong telephoto reach, high contrast, and image quality maintained from wide angle through the periphery of the frame.

Advanced Broadcast Performance

The lens includes OS-TECH optical stabilization, internal focusing, zoom/focus servo operation, and enhanced digital servo drive performance for sports, arenas, venues, and demanding live broadcast environments.

Professional Production Design

Its HD Premier field-lens design is suitable for tripod, pedestal, stadium, studio, and OB production setups where long-range capture and stable imaging are required.

Professional Workflow Integration

With B4 bayonet compatibility, 2/3-inch camera support, servo operation, and extender remote compatibility, the HA42x13.5BERD-U48 integrates into professional HD broadcast and live production systems.

Applications

• Sports broadcasting

• OB van production

• Stadium and arena coverage

• Studio pedestal operation

• Long-range HD field acquisition

• Live event broadcasting

• Professional 2/3-inch camera workflows
