Hirose HRS-HR10A-10P-10P 10-Pin Micro Circular Connector | Push-Pull Plug | Lightweight Build

Micro Multi-Pin Circular Plug

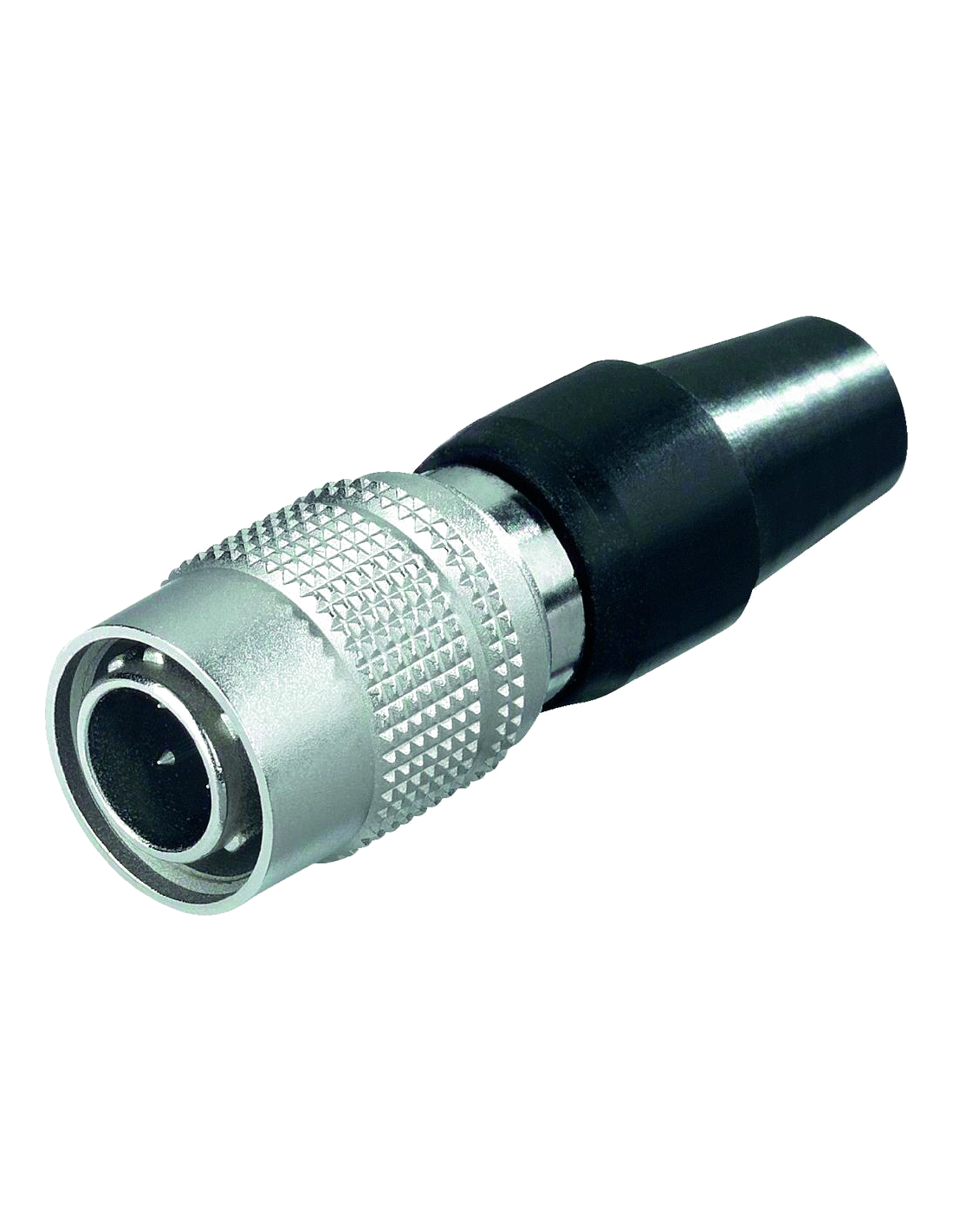

The Hirose HRS-HR10A-10P-10P is a ten-pin male plug from the HR10A micro series. Micro circular connectors are used where many signal pins must fit into a small housing, such as portable equipment, instrumentation and compact camera accessories, where a larger connector would not fit the layout. Confirm the required length and connector type when you request a quote.

Push-Pull Operation and Details

The HR10A series is a push-pull design, which means the connector is joined and released with a straight action rather than a twist. The listing describes it as light, reliable and durable, and easy to operate, which suits handling in busy equipment bays where speed matters. Check the specification against your project brief before placing an order.

Pin Layout and Gender

This part is a male plug with ten pins. The HR10A family includes several pin counts and gender combinations, so the mating socket must match the same series and pin count. Check the equipment drawing before ordering, since mismatched pins cannot be corrected in the field. Share the route and quantity with your enquiry so the quote matches the job.

Assembly and Strain Relief

Use the crimp or solder method specified for the HR10A series, and fit strain relief to protect each contact from bending. Check continuity on every pin after assembly, because a single open pin can disable a whole signal set in a compact multi-pin link. Confirm the required length and connector type when you request a quote.

Choosing the HR10A Plug

Choose the HR10A-10P-10P for compact ten-pin circular links where space and weight are limited. For a larger pin count or a locking variant, the RM series is the alternative. Hirose connectors are quoted per part and quantity for each project. Check the specification against your project brief before placing an order. Confirm the required length and connector type when you request a quote.
