Hirose HRS-RM12BPE-7S 7-Pin Circular Connector | RM Series Plug | Thread Bayonet Quick Disconnect

Compact Circular Connector for Cameras

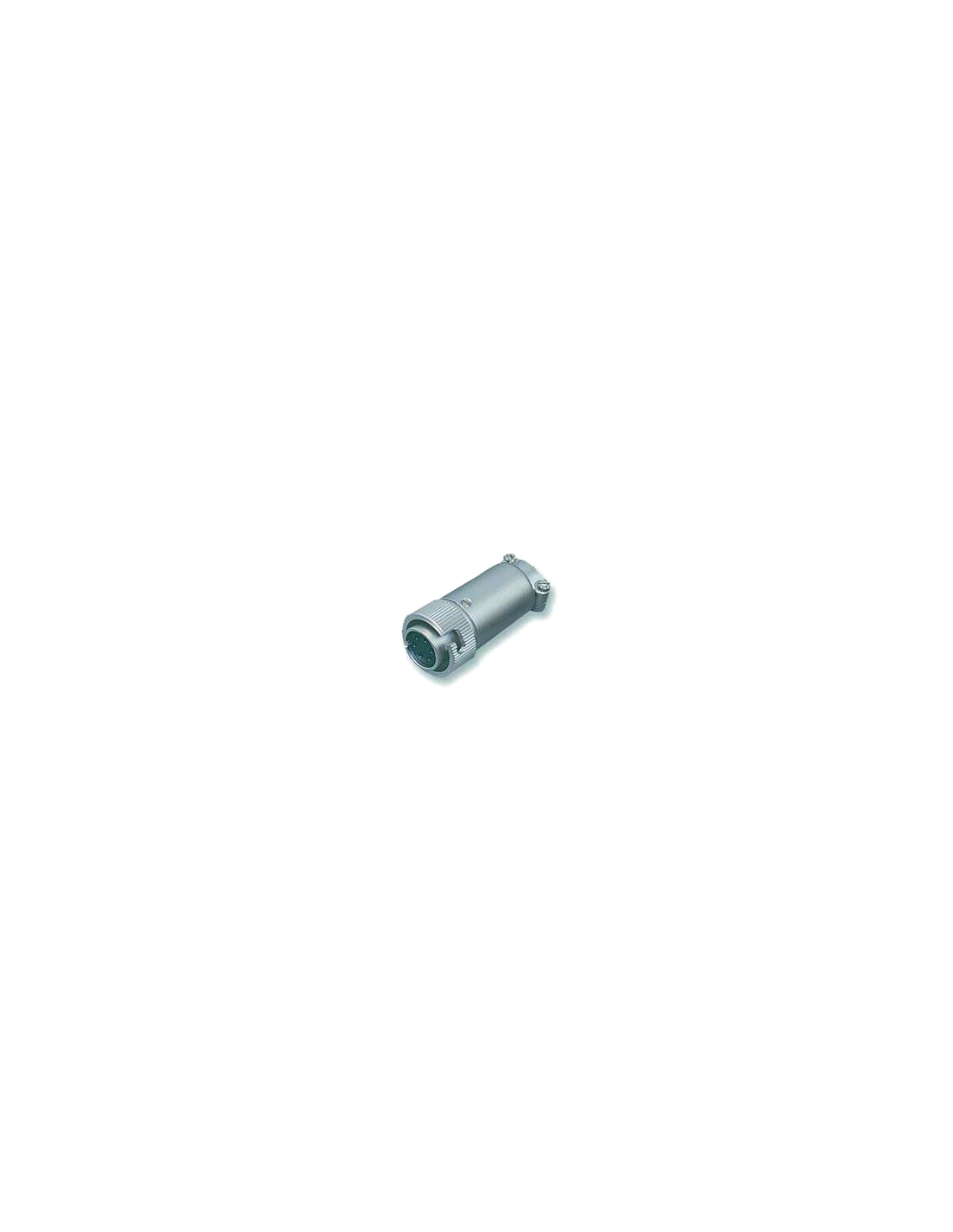

The Hirose HRS-RM12BPE-7S is a seven-pin circular plug from the RM series. The listing names Betacam Y/C from JVC and Hitachi power applications, so it appears on camera and recorder cables where a rugged, multi-pin round connector must sit in a small space and survive regular connection cycles. Confirm the required length and connector type when you request a quote.

Locking Options and Ease of Use

The RM series allows a thread coupling, a bayonet sleeve or a quick-disconnect lock, depending on the matching socket. The mechanism is described as very easy to use, which helps crews connect and remove cables quickly in mobile units and camera bays without tools. Check the specification against your project brief before placing an order.

Pin Count and Plug Type

This part is a female plug with seven pins. Gender matters in circular connectors, so confirm that the mating socket on the camera or recorder is the male type with the same pin layout and locking method before ordering the cable assembly. Share the route and quantity with your enquiry so the quote matches the job.

Assembly Practice and Details

Assemble the plug with the crimp or solder method specified by Hirose for the RM series, and keep the pin layout aligned with the equipment drawing. Strain relief at the rear of the body prevents pull damage, which is the usual failure mode on handheld camera leads. Confirm the required length and connector type when you request a quote.

Selecting the RM Connector

Choose the RM12BPE-7S when a camera or recorder needs a seven-pin circular plug with a rugged locking option. For micro multi-pin connections, the HR10A series is the smaller alternative. Hirose connectors are quoted per connector and quantity. Check the specification against your project brief before placing an order. Confirm the required length and connector type when you request a quote.
