Overview

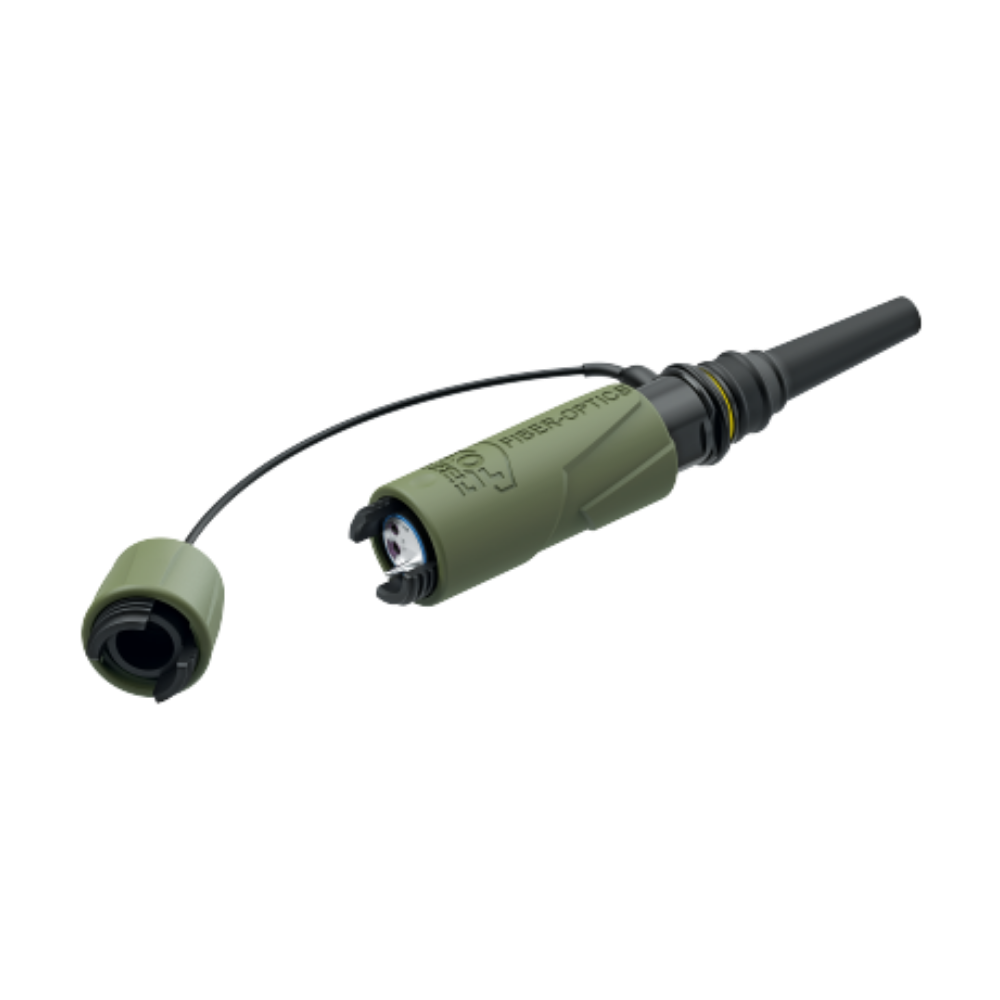

The Neutrik FIBERFOX EBC25 2CH is a pre-assembled expanded beam fiber optic cable designed for mission-critical communications in harsh environments. Featuring a 2-channel hermaphroditic expanded beam connector, it complies with the MIL-DTL-83526 standard and is ideal for broadcast, military, railway, industrial, and government applications. It is available in both single-mode and multimode fiber versions.

Professional Fiber Performance

The FIBERFOX EBC25 2CH utilizes expanded beam technology to deliver dependable optical transmission even in the presence of dust, mud, moisture, and other contaminants. Its hermaphroditic connector design eliminates the need for separate male and female connectors or couplers, allowing direct cable-to-cable extensions. The connector provides IP68 protection in both mated and unmated conditions and supports more than 10,000 mating cycles for exceptional long-term reliability.

Durable Professional Construction

Built for demanding field deployment, the cable features a hard-anodized aluminum connector shell, steel insert, EPDM rubber boot, brass strain relief, and a rugged PUR tactical cable reinforced with aramid yarn. Its enhanced operating temperature range of -46°C to +71°C makes it suitable for extreme outdoor environments.

Applications

•
  Broadcast and outside broadcast (OB)

•
  Live event production

•
  Military and defense communications

•
  Railway communication systems

•
  Industrial networking

•
  Oil & gas and critical infrastructure
