High-Efficiency Multi-Stream Decoding

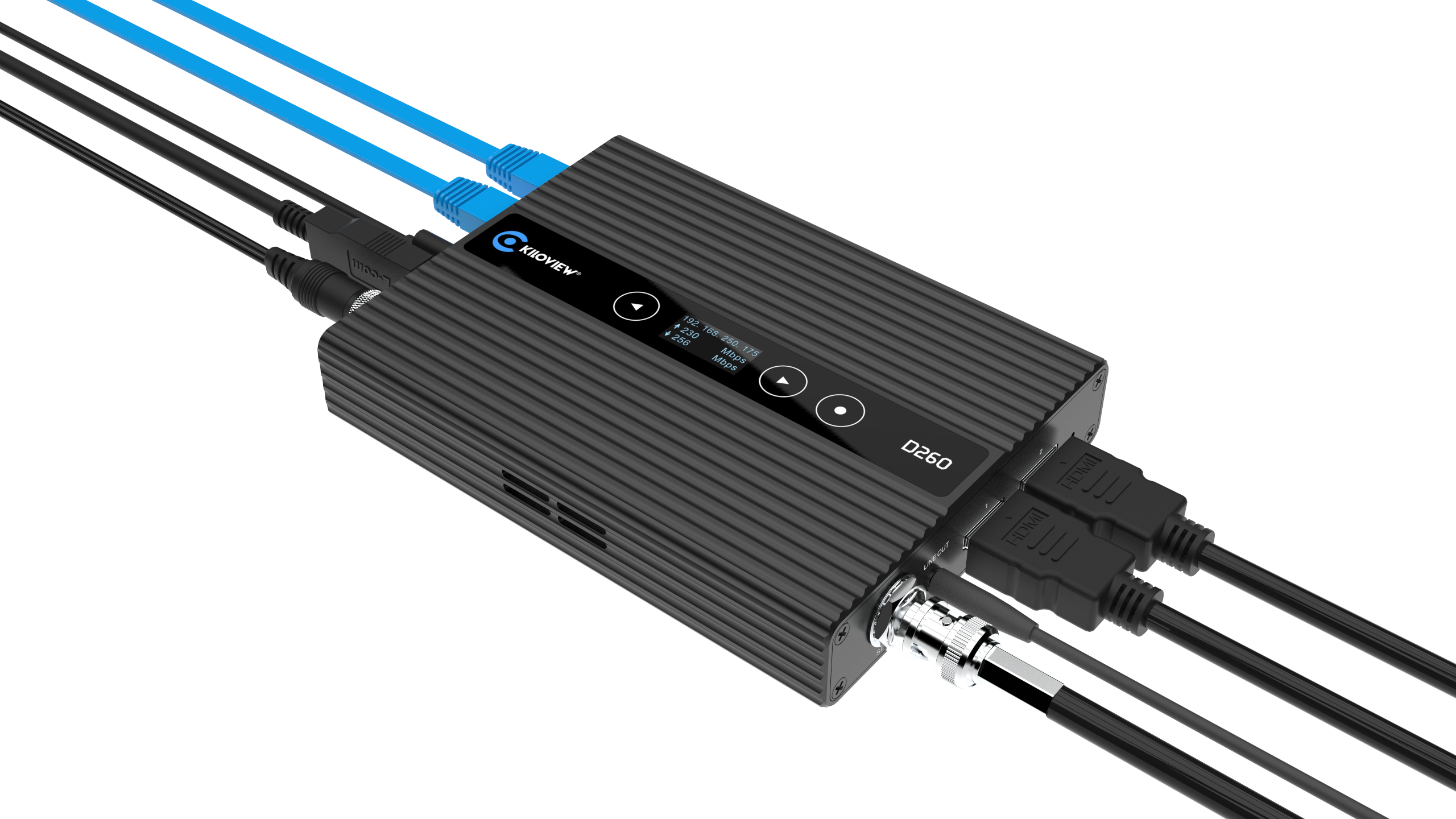

The Kiloview D260 is designed for production environments that demand reliability and low latency. Utilizing an upgraded chipset, the unit supports both H.264 and H.265 (HEVC) decoding, allowing it to process four simultaneous 1080p60 video flows. This performance enables a "preview + output" workflow where operators can visualize 16 different sources and select any four for active output, making it an ideal choice for multi-camera monitoring and live switch environments.

Expanded Connectivity and Output Versatility

Built as an evolution of the DC230, the D260 expands your interface options with dual HDMI 2.0 and a 3G-SDI output. These ports can be configured in three distinct ways: independent outputs for different feeds, a single combined multi-channel flow (PIP/Grid), or a replicated signal across all screens. This flexibility ensures the D260 can adapt to any studio requirement, from secondary monitoring to driving large-scale display walls.

Professional Audio Management

Beyond its visual capabilities, the D260 features a robust audio matrix. It supports an extensive list of formats, including AAC, G.711, and Opus, allowing for granular control over the soundscape. Operators can mix different audio sources, apply gain, or switch channels on/off in real-time, outputting the final mix through HDMI, SDI, or the dedicated 3.5mm line-out port for external monitoring.

Tactile Control and Rugged Expansion

Operation is streamlined through a front-panel LCD screen and responsive touch buttons, providing instant data on transmission status without needing a separate monitor. For more complex setups, the D260 includes USB-C and USB-A expansion ports. these allow for integrated PTZ camera control and intercom connectivity, effectively turning the decoder into a centralized control hub for your entire IP video ecosystem.
