LA-R240 24-ch DMX512 Light Console

SWIT DMX

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Standard DMX512 lighting console with built-in isolator
24-channel faders for precise lighting control
6 submaster faders for grouped control
Dedicated master fader for overall intensity
LCD for real-time DMX channel values
Flash buttons for each channel slider
Expandable up to 96 channels via serial connection
Supports PowerCON AC input and loop output
19-inch rack mountable design for professional setups

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

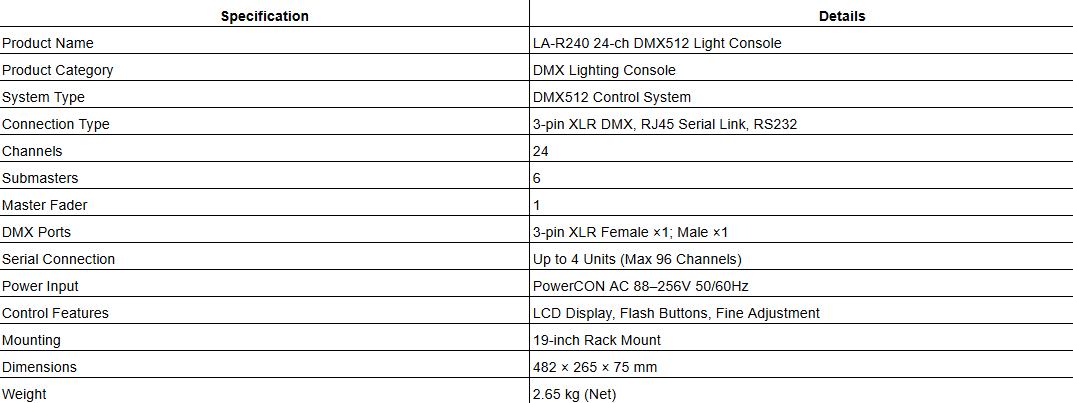

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Professional 24-Channel DMX Control

The LA-R240 is a fully featured DMX512 lighting console designed for broadcast studios and stage productions. With 24 individual channel faders, it provides precise and responsive control for complex lighting setups.

Submaster and Master Control System

Equipped with 6 submaster faders, users can group multiple channels for simplified control. The master fader allows instant adjustment of all connected lights, making it ideal for live production environments.

Real-Time LCD Monitoring

The built-in LCD screen displays exact DMX values for each channel, enabling accurate adjustments. Fine-tuning buttons allow precise control beyond standard fader movement.

Expandable to 96 Channels

The LA-R240 supports serial connection of up to 4 units via RJ45, expanding control capacity to a maximum of 96 channels. This makes it suitable for large-scale lighting systems.

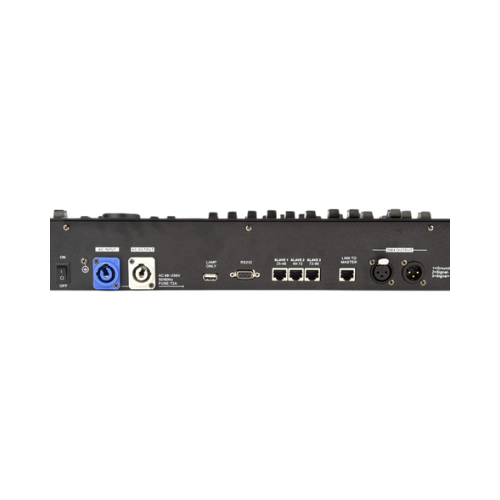

Advanced Connectivity Options

The console includes both 3-pin XLR DMX input/output, RS232 remote control, and RJ45 ports for linking multiple units. PowerCON AC input and loop output ensure reliable power distribution in professional setups.
