Advanced DMX Lighting Control

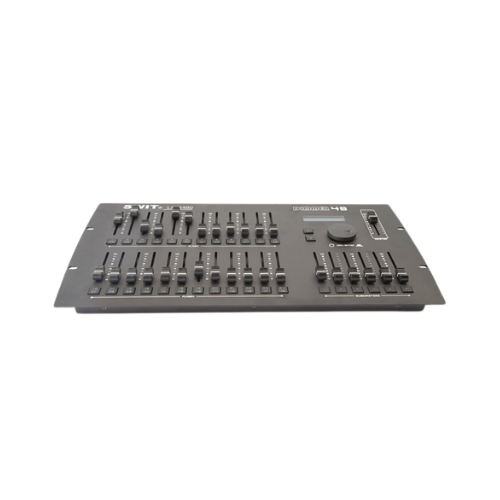

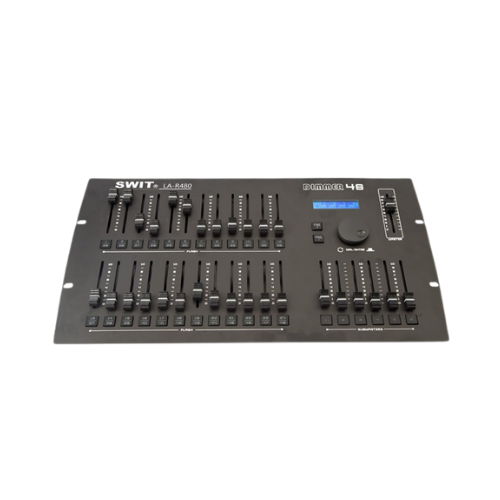

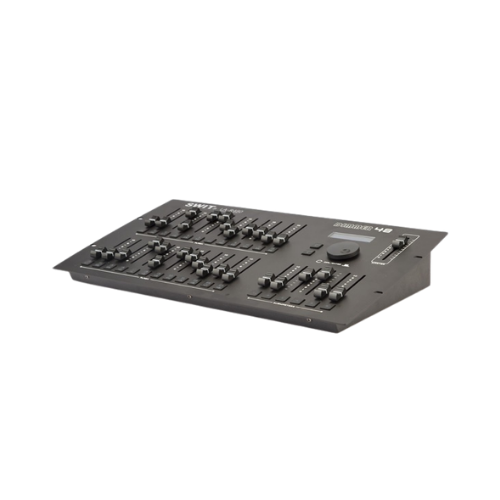

The LA-R480 48-channel DMX512 Light Console is designed for precise and professional lighting control. With its standard DMX512 protocol and built-in isolator, it ensures stable signal transmission, making it ideal for stage, studio, and event lighting applications.

Flexible Channel Management

Equipped with 24-channel faders and an A/B page switch, this console allows seamless control of up to 48 channels. This dual-layer functionality enhances workflow efficiency, enabling users to manage complex lighting setups with ease.

Submaster & Master Control System

The console features 6 submaster faders that allow grouping of multiple channels for synchronized control. Additionally, a dedicated master fader provides overall control of all connected lighting fixtures, ensuring smooth operation during live performances.

Expandable System Capability

For larger setups, the LA-R480 supports serial connection of up to four units via RJ45 ports. This expands the system capacity to a maximum of 192 channels, making it scalable for large venues and productions.

Versatile Connectivity & Interface

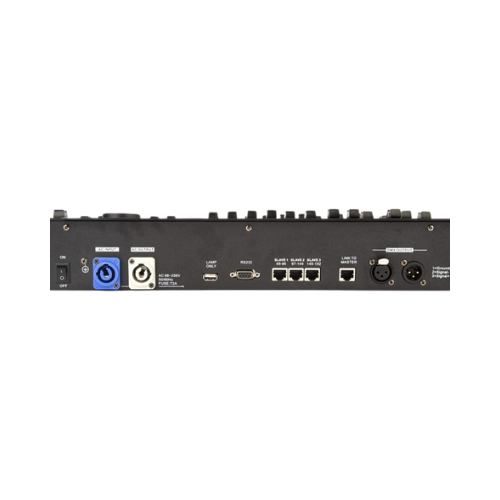

The console supports a wide input voltage range (AC 88–256V, 50/60Hz) and includes multiple connectivity options such as RS232 remote control, RJ45 serial linking, and both 3-pin male and female DMX outputs.

Clear Display & User-Friendly Design

An integrated LCD screen provides real-time monitoring of DMX channel values, while flash buttons on each slider offer instant control. Its 19-inch rack-mountable design ensures easy integration into professional setups.
