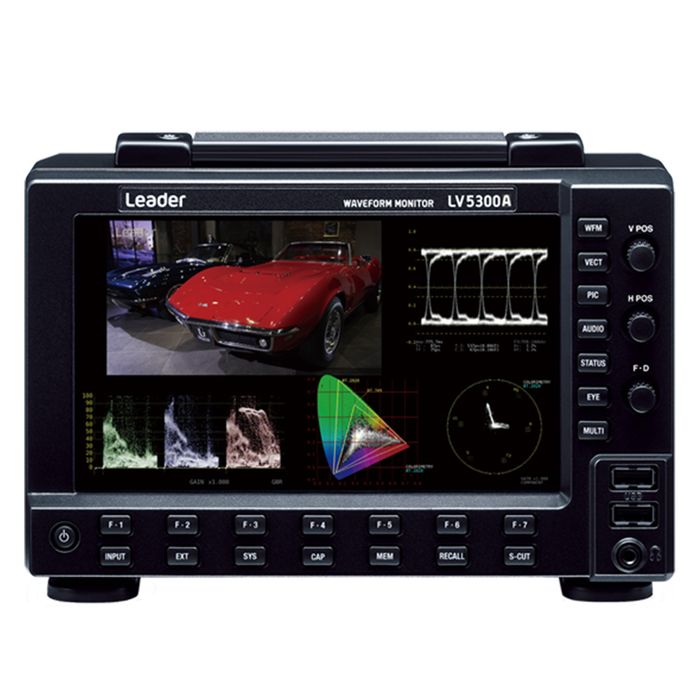

Leader LV5300A 4K 12G-SDI Waveform Monitor

Leader Waveform Monitor

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Compact waveform monitor supporting SDI signals from SD through 12G rates
Integrated physical-layer testing with eye-pattern and signal-quality analysis
7-inch touchscreen display in a short-depth 3U half-rack form factor
Waveform, vector, picture, audio and eye-pattern measurement displays
HDR monitoring and professional status, error-log and long-term chart functions
Designed for broadcast, production, engineering and quality-control environments

Pricing Dhs. 0.00

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Compact 12G-SDI Waveform Monitoring

Leader LV5300A is a short-depth professional waveform monitor supporting SDI signals from SD through 12G rates in a compact 3U half-rack form factor.

Physical Layer Analysis

Integrated eye-pattern and physical-layer measurement capabilities help engineers evaluate SDI signal integrity in addition to conventional waveform and picture monitoring.

Comprehensive Measurement Displays

Waveform, vector, picture, audio and eye-pattern displays provide detailed signal analysis, with status, event-log and long-term chart functions for system quality control.

7-Inch Touchscreen Operation

The built-in 7-inch touchscreen combines visual monitoring with direct control, making the LV5300A suitable for broadcast engineering, production and quality-control environments.

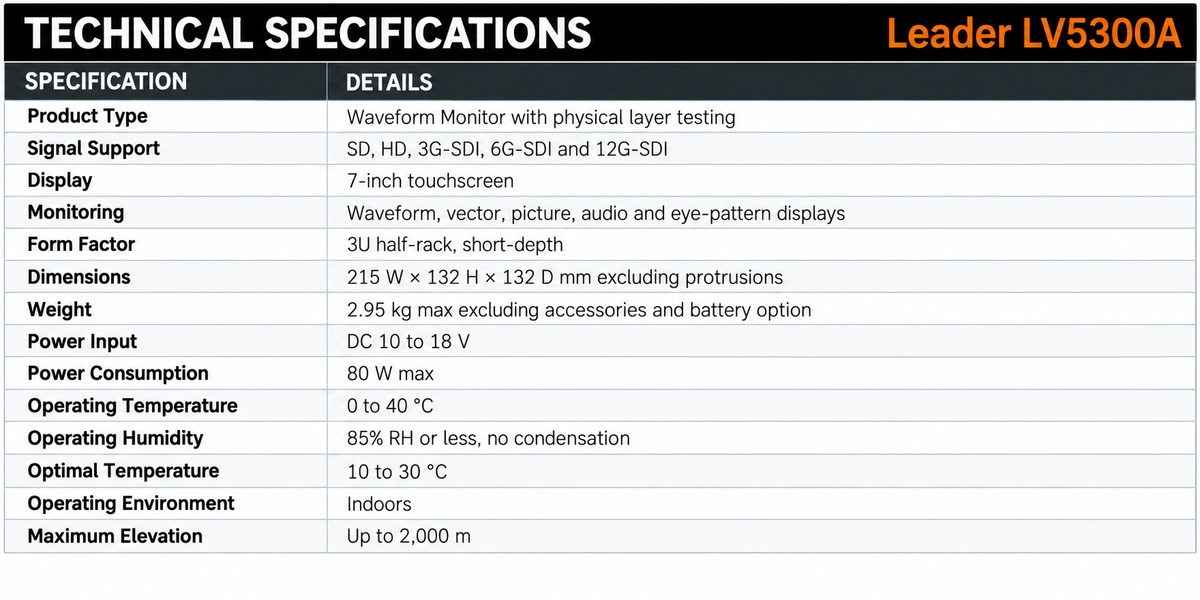

Technical Specifications +

technical specifications
