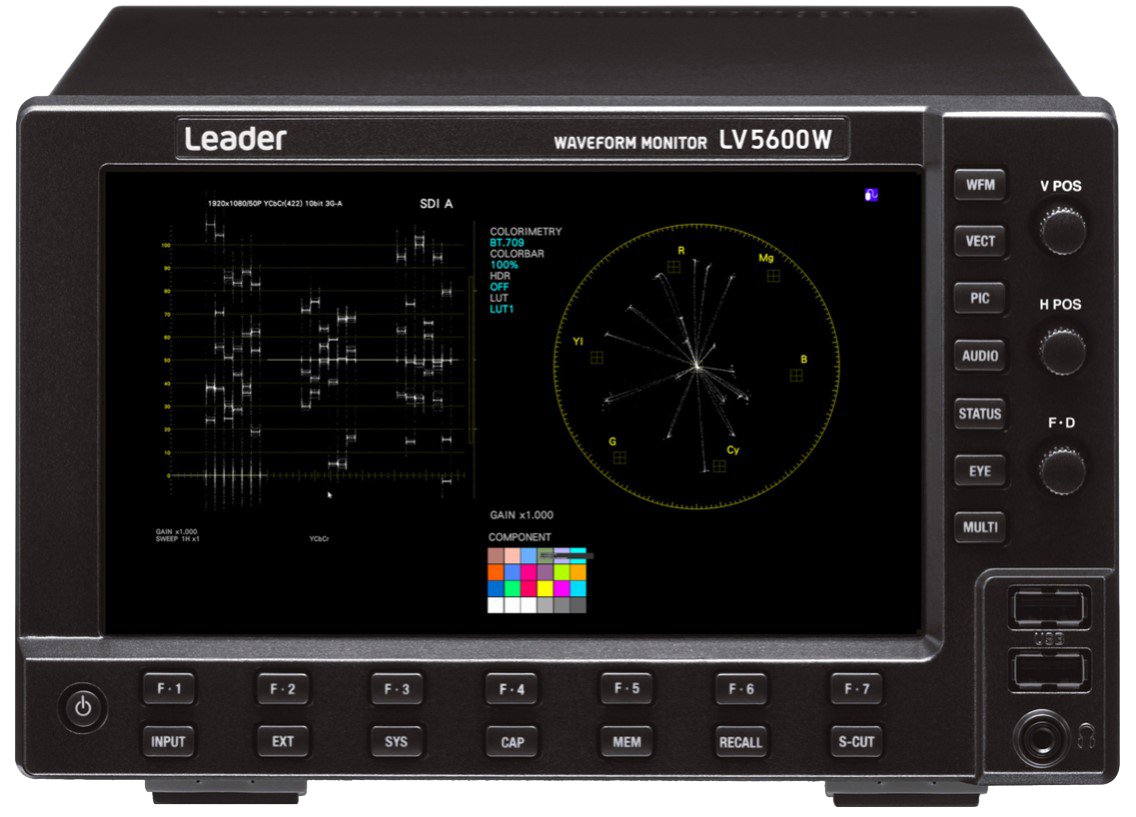

Leader LV5600W 4K IP/SDI Waveform Monitor

Leader Waveform Monitor

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

True-hybrid waveform monitor for simultaneous SDI and IP signal measurement
Supports SD through 12G-SDI plus UHDTV, HD and SD video over IP with options
7-inch touchscreen display in a compact 3RU half-rack enclosure
Waveform, vector, picture, audio and optional eye-pattern monitoring
Optional 10Gb/s and 25Gb/s IP, JPEG XS, UHD and discrete audio capabilities
WebRTC-enabled remote operation for flexible broadcast and production workflows

Pricing Dhs. 0.00

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

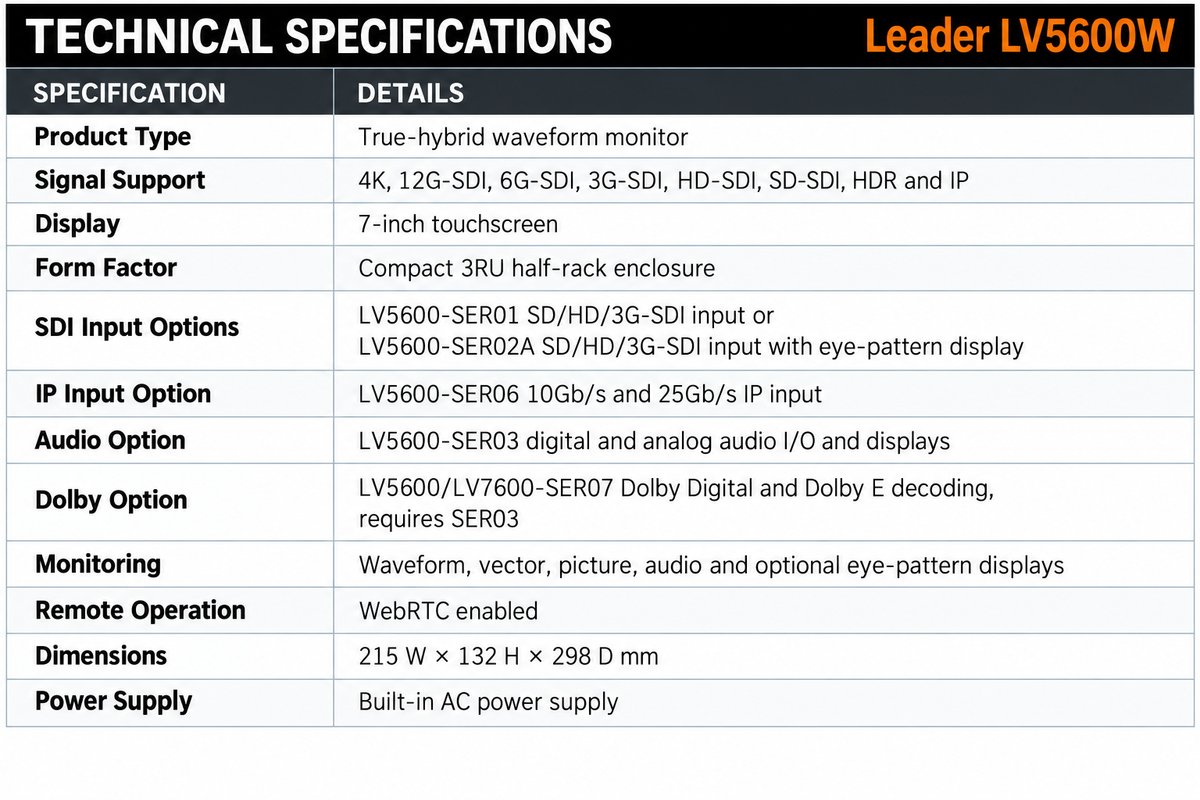

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

True-Hybrid SDI and IP Monitoring

Leader LV5600W is a professional waveform monitor designed to measure and monitor both SDI and video-over-IP signals in modern broadcast, production and engineering environments.

Comprehensive Signal Support

The platform supports SD, HD and 4K SDI signals up to 12G-SDI, while optional IP interfaces extend monitoring to UHDTV, HD and SD IP workflows at up to 25Gb/s.

Advanced Measurement Tools

Waveform, vector, picture, audio and optional eye-pattern displays provide detailed quality control, complemented by status, event-log and long-term monitoring tools.
