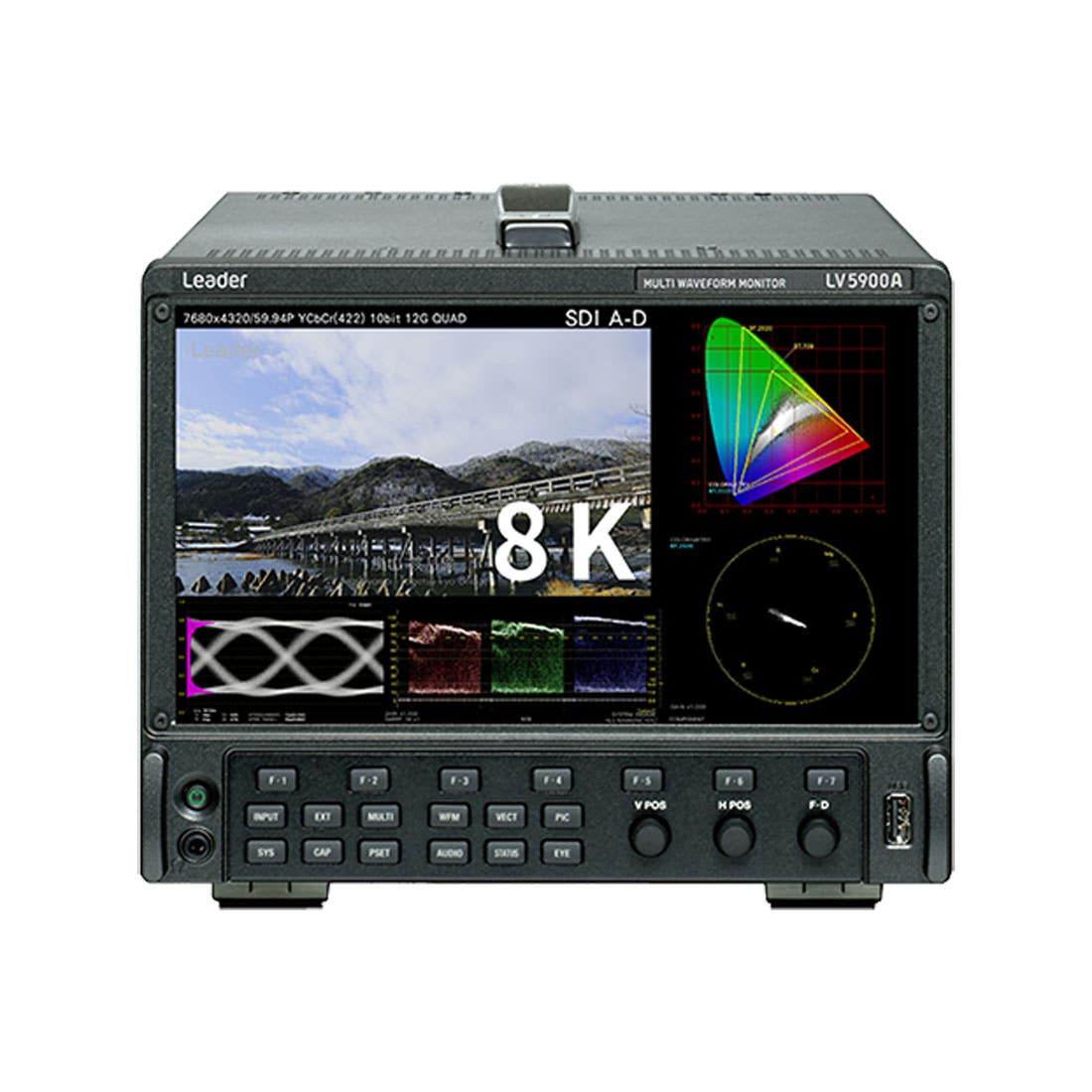

Leader LV5900A 8K 12G-SDI Waveform Monitor

Leader Waveform Monitor

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-end waveform monitor supporting 8K video via quad-link 12G-SDI
Supports SMPTE ST 2082-12 and 7680/8192 × 4320 video up to 59.94p
Also supports 4K input and four simultaneous HD inputs for flexible operation
Waveform, vector, picture and eye-pattern displays for detailed signal measurement
Status, error-log and long-term chart tools help assess system stability
Professional SDI monitoring platform for 8K, 4K and HD broadcast workflows

Pricing Dhs. 0.00

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Professional 8K Waveform Monitoring

Leader LV5900A is a high-end SDI waveform monitor designed for 8K, 4K and HD broadcast signal measurement and quality control.

SMPTE ST 2082-12 Support

The monitor supports 7680 and 8192 × 4320 video up to 59.94p using quad-link 12G-SDI, providing a dedicated platform for demanding 8K production workflows.

Flexible 4K and HD Operation

In addition to 8K monitoring, the LV5900A supports 4K input and four simultaneous HD inputs, allowing it to move between multiple production formats as required.

Detailed Signal Analysis

Waveform, vector, picture and eye-pattern displays are complemented by status displays, error reporting, event logs and long-term charts for evaluating system stability.

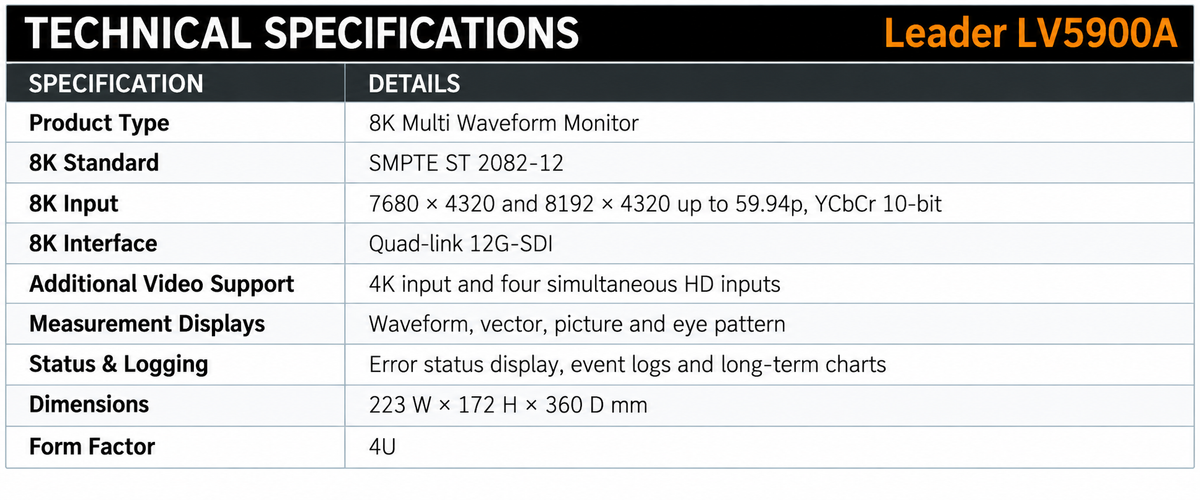

Technical Specifications +

technical specifications
