LeaderPhabrix LPX500 4K IP/SDI Waveform Monitor

Leader Waveform Monitor

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Four independent analyzers for multi-channel video analysis and monitoring
Supports up to 4 × 12G-SDI and 2 × 100GbE IP inputs with optional configurations
SMPTE ST 2110, ST 2022-6 and ST 2022-7 analysis for hybrid IP/SDI workflows
Integrated 8-inch 1920 × 1200 multi-touch display with optional second touchscreen
Waveform, vector, picture, audio, ANC and advanced IP analysis toolsets
Optional RTE real-time eye, jitter, UHD/4K, HDR/WCG and signal generation capabilities

Pricing Dhs. 0.00

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Hybrid IP/SDI Waveform Monitoring

LeaderPhabrix LPX500 is a multi-channel 4K waveform monitor designed for modern hybrid broadcast facilities, combining next-generation Leader and PHABRIX test and measurement technology in a compact platform.

Four Independent Analyzers

A bank of four independent analyzers enables simultaneous monitoring of multiple 4K, HDR, SDR, SDI and IP sources, with configurations supporting up to four 12G-SDI and two 100GbE IP inputs.

Professional IP Analysis

The platform supports SMPTE ST 2110-20/-30/-31/-40, ST 2022-6 and ST 2022-7 workflows, with 10GbE IP analysis standard and optional 25GbE and 100GbE capabilities.

Flexible Monitoring Platform

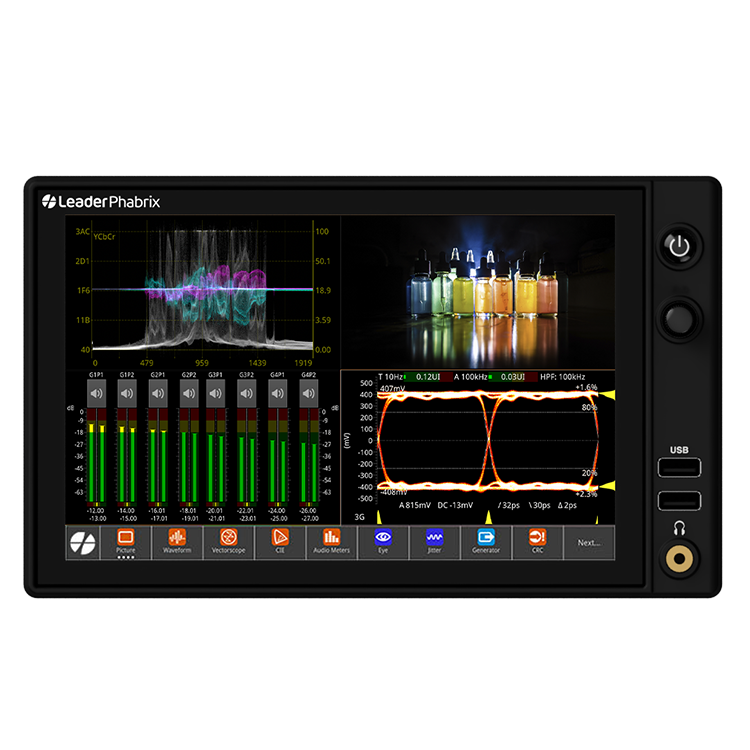

An integrated 8-inch 1920 × 1200 multi-touch display provides local operation, with optional secondary touchscreen support and noVNC browser access for remote monitoring.

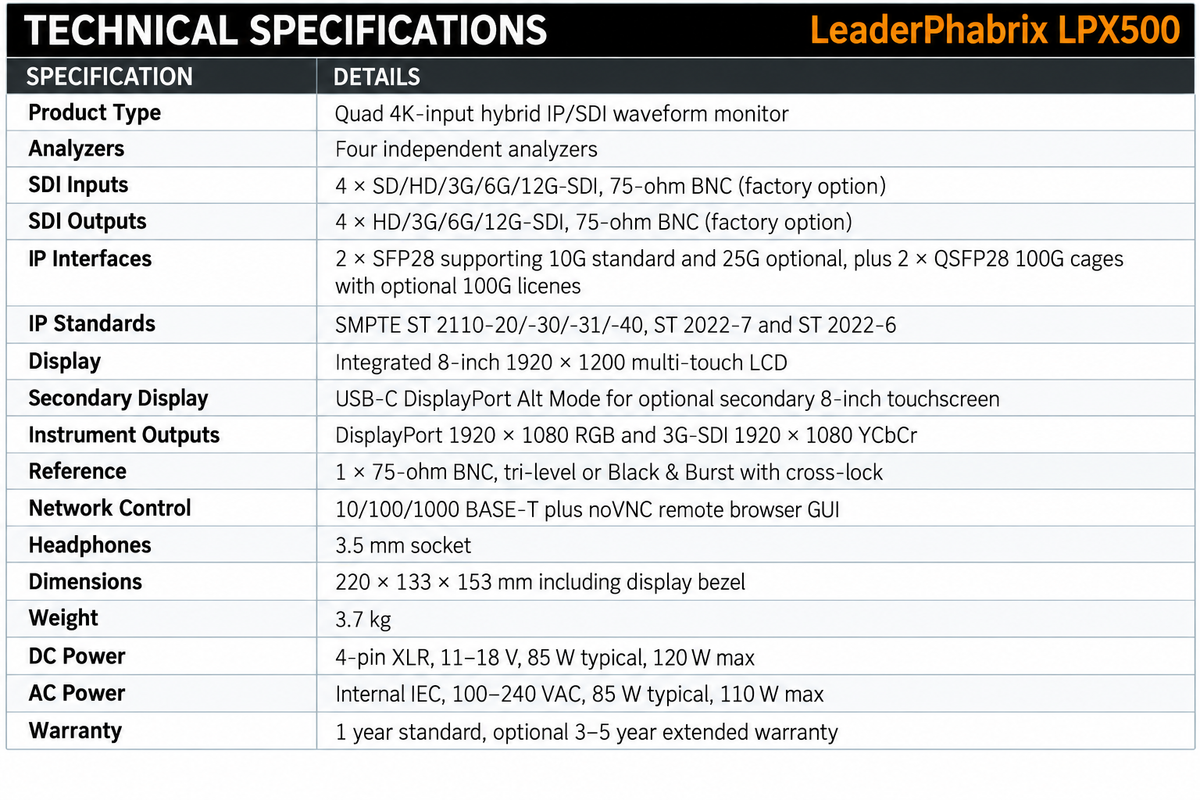

Technical Specifications +

technical specifications
