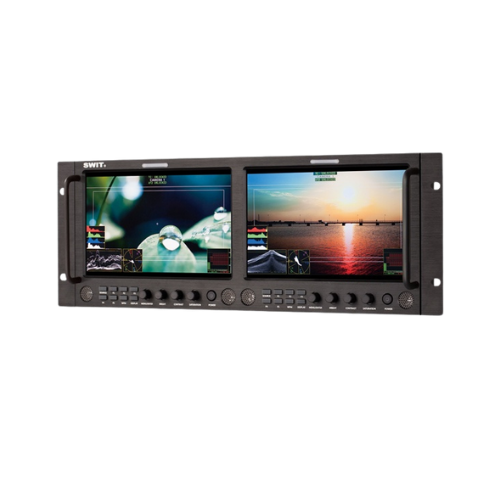

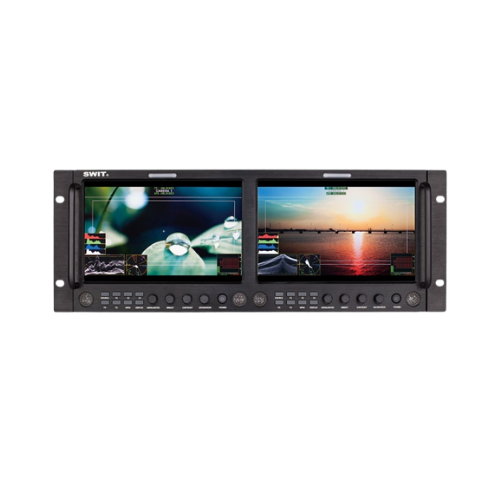

Dual 9-inch Full HD IPS Displays

The M-1093F features two 9-inch IPS LCD panels with 1920×1200 resolution, delivering sharp images and accurate color reproduction. Wide viewing angles ensure clarity from multiple positions in rack-mounted setups.

Rack-Mountable with Adjustable Viewing

Designed for professional environments, the monitor fits into a 19-inch rack (4U height) and supports ±30° tilt adjustment, allowing flexible viewing in control rooms and broadcast racks.

Comprehensive Multi-Format Connectivity

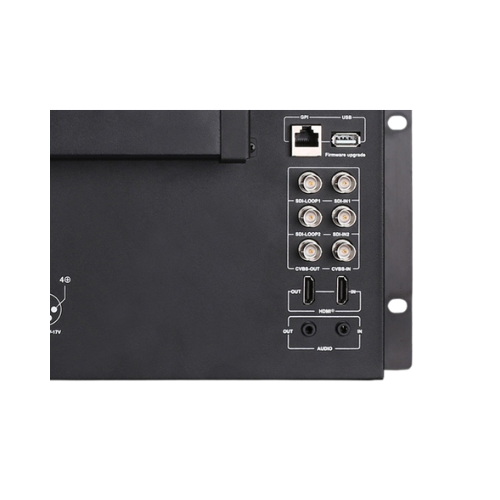

Each screen supports SDI, HDMI®, and CVBS inputs with loop outputs, ensuring compatibility with a wide range of broadcast and production equipment.

Advanced Video Analysis Tools

Includes waveform, vectorscope, and histogram monitoring for accurate analysis of luminance, color, and signal levels, making it ideal for technical evaluation.

Professional Audio Monitoring

Supports up to 16-channel embedded audio meters with alert indicators. Users can select any 2 channels for output, enabling precise audio control.

Broadcast Control & Monitoring Features

Equipped with TSL UMD and text TALLY display, GPI control, timecode display, and safety markers. These features make it suitable for live production and studio monitoring.

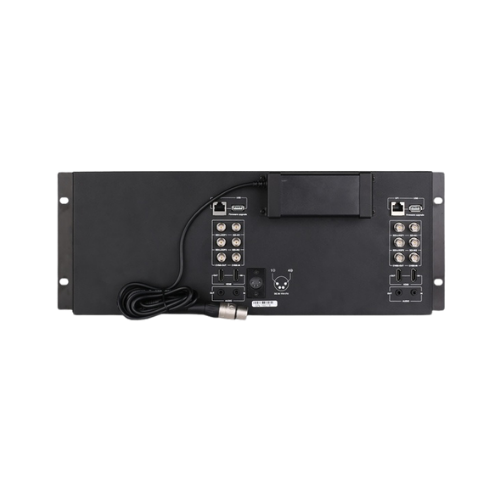

Reliable Power & Installation

Supports DC power input with integrated AC adapter. Designed for stable rack installation, making it ideal for OB vans, studios, and control rooms.
