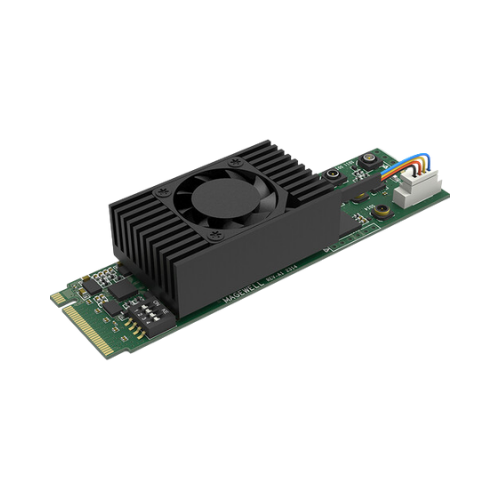

Magewell Eco Capture 12G-SDI 4K Plus M.2 Capture Card with Heatsink/Fan

Magewell Video Production

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Capture up to DCI 4K60 with 10-bit video processing
Supports single 12G-SDI or quad-link 3G-SDI inputs
Compact M.2 2280 (PCIe Gen3 x4) interface
Integrated heatsink and fan for thermal stability
Supports up to 8-channel embedded audio (48 kHz)
Automatic input signal detection
Low-latency mode with advanced video processing
Color conversion, scaling, and deinterlacing
Multiple capture streams with A/V synchronization
Compatible with Windows and Linux systems

Pricing Dhs. 3,050.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Professional 4K SDI Capture Performance

Magewell Eco Capture 12G-SDI 4K Plus M.2 Capture Card with Heatsink/Fan is designed for high-performance video capture up to DCI 4K60. Supporting both 12G-SDI and quad-link 3G-SDI inputs, it offers flexibility for various professional SDI workflows.

Advanced Cooling for Continuous Operation

Equipped with an integrated heatsink and fan, the card maintains optimal operating temperatures, ensuring stable performance during long-duration and high-intensity capture tasks.

Flexible Multi-Link SDI Connectivity

The device supports single 12G-SDI input or quad 3G-SDI inputs, enabling compatibility with a wide range of broadcast and professional video equipment. It also supports long cable distances depending on SDI format.

Powerful Video Processing Engine

Featuring a high-performance processing pipeline, the card supports scaling, deinterlacing, frame rate conversion, and color format conversion, delivering optimized video output across different applications.

Multi-Stream Capture & Synchronization

With support for multiple capture streams and hardware-based timestamping, it ensures accurate audio/video synchronization, making it ideal for professional broadcasting and streaming environments.

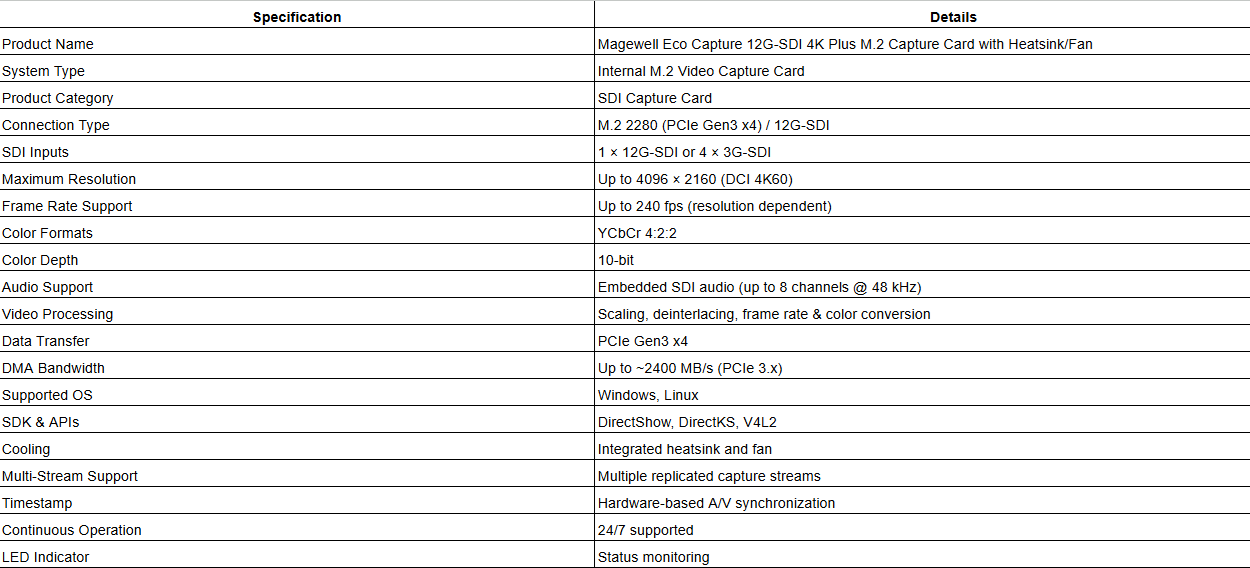

Technical Specifications +

technical specifications
