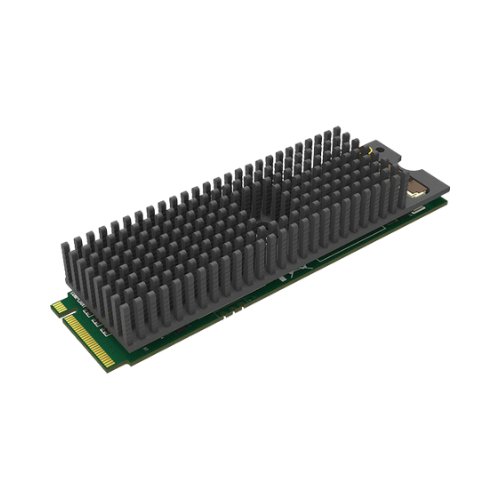

Magewell Eco Capture AIO M.2 - Single-Channel 2K Capture Card

Magewell Video Production

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Capture up to UHD 2K (2048 × 1080) at 60fps
Compact M.2 2280 (PCIe Gen2 x2) form factor
Supports both HDMI and SDI input sources
24/7 continuous operation capability
Auto-detection of input signal format
Built-in scaling, deinterlacing, and frame rate conversion
8-bit 4:4:4 color output for accurate video quality
Multiple replicated capture streams support
LED status indicator for real-time monitoring
Compatible with Windows and Linux with SDK support

Pricing Dhs. 1,196.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Compact M.2 Capture Solution

Magewell Eco Capture AIO M.2 Single-Channel 2K Capture Card is designed for compact and embedded systems, offering high-performance video capture in a small M.2 2280 form factor. It is ideal for systems where traditional PCIe slots are limited.

Dual Input Flexibility (HDMI & SDI)

This capture card supports both HDMI and SDI inputs, allowing users to connect a wide range of professional and consumer video sources, including cameras, encoders, and broadcast equipment.

Advanced Video Processing Engine

The device includes built-in processing features such as scaling, deinterlacing, frame rate conversion, and color format conversion, ensuring optimized capture performance across different video formats.

High Performance & Low Latency

With high DMA bandwidth and efficient processing pipelines, the card delivers smooth, low-latency video capture with support for frame rates up to 144 fps, depending on system bandwidth.

Reliable 24/7 Operation

Engineered for continuous use, the card supports 24/7 operation and includes an LED status indicator for real-time monitoring of signal and device status, making it suitable for professional environments.

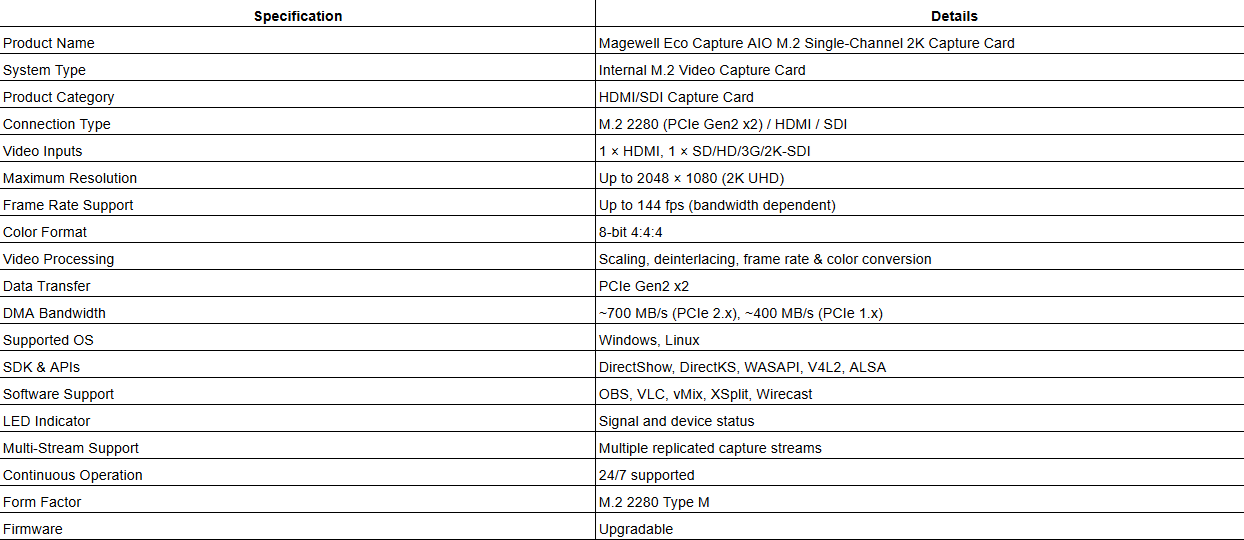

Technical Specifications +

technical specifications
