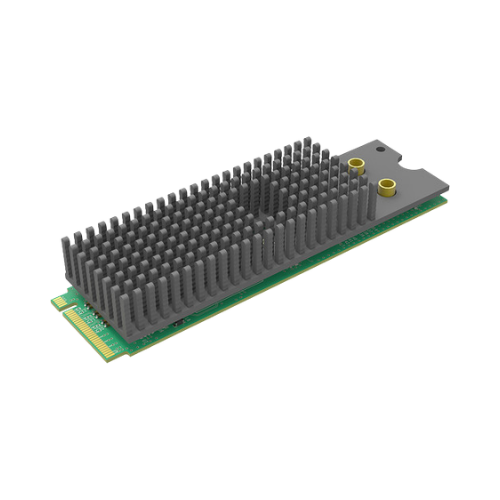

Magewell Eco Capture Dual SDI M.2 Card - Two-channel 2K capture card

Magewell Video Production

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Dual-channel SDI capture (2 inputs simultaneously)
Capture up to 2048 × 1080 resolution per input
Supports 2K/3G/HD/SD-SDI signals
Compact M.2 2280 (PCIe 2.0) interface
Designed for 24/7 continuous operation
MMCX connectors with included MMCX-to-BNC adapter cables
Advanced video processing with scaling and deinterlacing
High-fidelity processing pipeline
Hardware timestamp and A/V synchronization
LED status indicator for real-time monitoring

Pricing Dhs. 1,416.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Dual SDI Capture for Compact Systems

Magewell Eco Capture Dual SDI M.2 Card is built for compact and embedded systems, allowing simultaneous capture from two SDI sources. Its small M.2 form factor makes it ideal for space-constrained PCs and industrial applications.

Flexible MMCX-Based SDI Connectivity

The card features dual MMCX input connectors and includes MMCX-to-BNC adapter cables, ensuring flexible integration with professional SDI video equipment while maintaining signal reliability.

Advanced Video Processing Capabilities

Equipped with a high-performance processing pipeline, the card supports scaling, cropping, deinterlacing, frame rate conversion, and color format conversion, delivering optimized video output across different workflows.

Multi-Stream Capture & Synchronization

It supports multiple replicated capture streams per channel along with hardware-based timestamps, ensuring precise audio/video synchronization—ideal for professional multi-channel capture systems.

Reliable 24/7 Operation

Designed for continuous use, the card operates 24/7 with stable performance. The LED indicator provides real-time device and signal status, ensuring reliability in demanding environments.

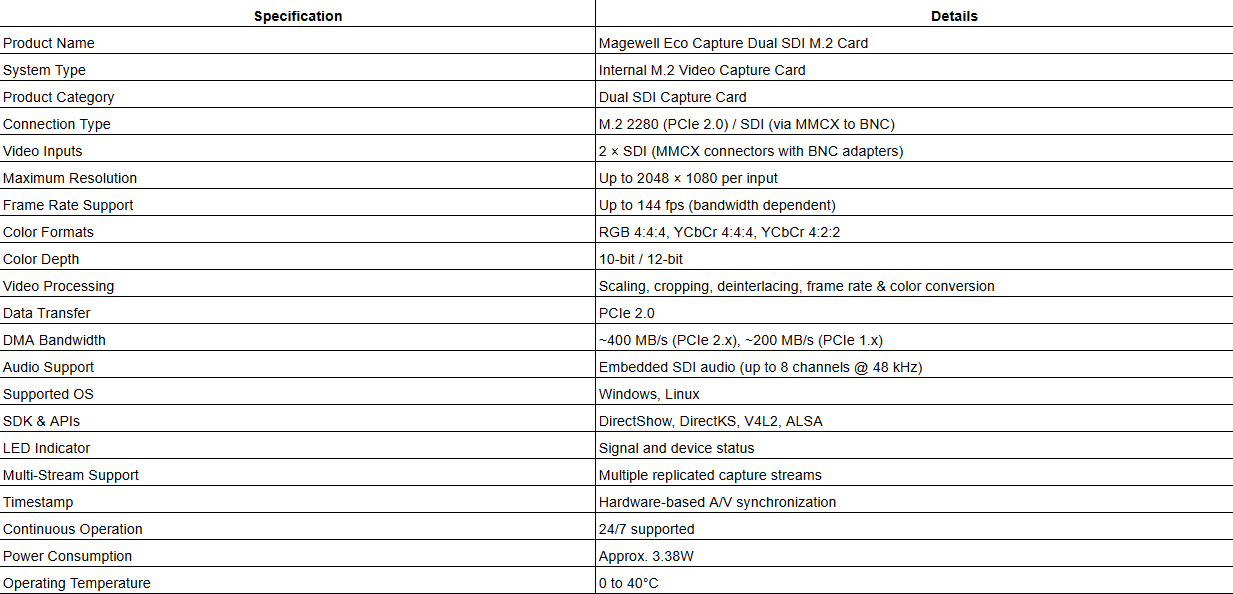

Technical Specifications +

technical specifications
