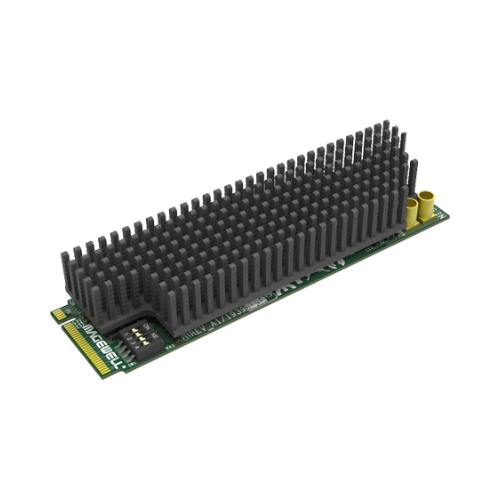

Magewell Eco Capture SDI 4K Plus M.2 Capture Card - Single channel 4K capture card

Magewell Video Production

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Capture SD/HD/3G/6G/12G-SDI signals via PCIe 2.0
Supports up to DCI 4K (4096 × 2160) resolution
10-bit professional video processing
8-channel embedded SDI audio support
12G-SDI input with loop-through output
Advanced processing: scaling, deinterlacing, cropping
Aspect ratio and color space conversion
Compatible with Windows and Linux systems
Hardware timestamp for A/V synchronization
Designed for professional capture and streaming workflows

Pricing Dhs. 2,888.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Performance 4K SDI Capture

Magewell Eco Capture SDI 4K Plus M.2 Capture Card is a professional-grade solution for capturing SDI video signals up to DCI 4K resolution. With support for 12G-SDI, it ensures high-bandwidth video transmission and superior capture quality.

Versatile SDI Connectivity with Loop-Through

The card features a 12G-SDI input along with a loop-through output, allowing simultaneous capture and monitoring. It supports a wide range of SDI standards including SD, HD, 3G, 6G, and 12G-SDI.

Advanced Video Processing Engine

Equipped with a powerful video engine, the card supports scaling, deinterlacing, cropping, frame rate conversion, and color format conversion. It also enables aspect ratio adjustments and high-quality image processing.

Multi-Channel Audio Support

The device supports up to 8 channels of embedded SDI audio at 48 kHz, making it suitable for professional broadcast and production environments.

Reliable Integration & Operation

Compatible with Windows and Linux systems, the card integrates seamlessly with popular capture and streaming software. Its robust design supports continuous operation for demanding professional applications.

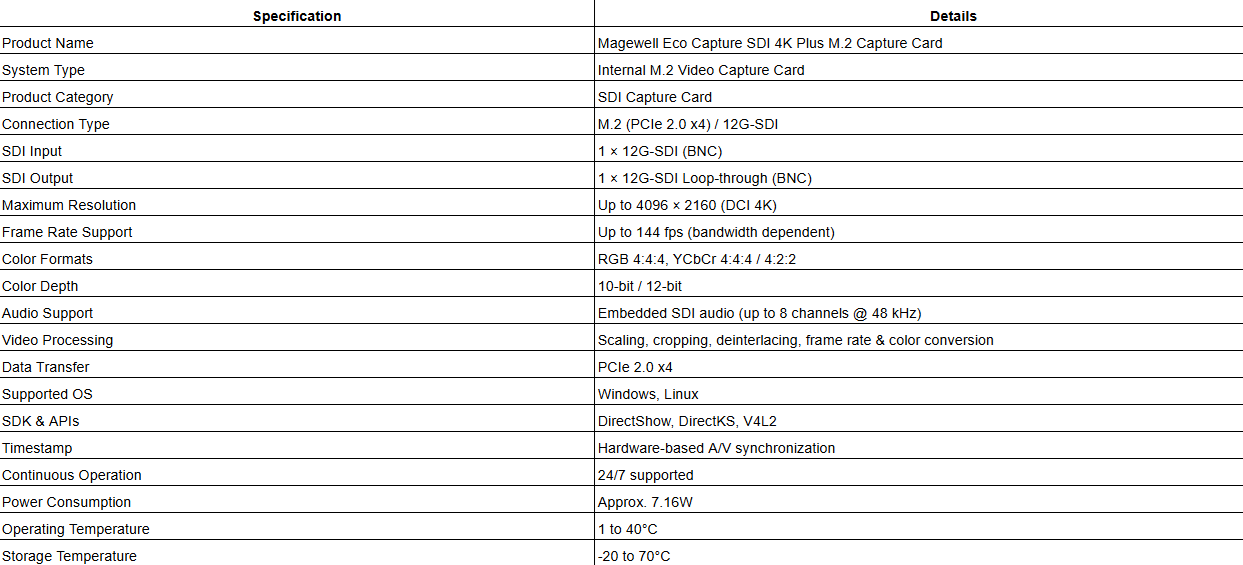

Technical Specifications +

technical specifications
