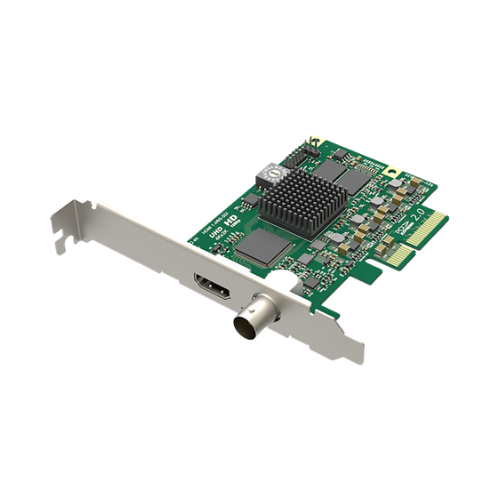

High-Performance 4K Video Capture

The Magewell Pro Capture AIO 4K enables seamless capture of ultra-high-definition video up to 4096 × 2160 resolution. It supports both DCI 4K and UHD formats, making it ideal for professional broadcasting, streaming, and recording workflows.

Dual Input Flexibility (HDMI & SDI)

Equipped with HDMI 1.4 and 6G-SDI inputs, this capture card provides flexible connectivity for cameras, switchers, and other professional video sources. It supports a wide range of SD, HD, 2K, and 4K formats.

Advanced Video Processing Engine

With powerful onboard processing, the card supports cropping, scaling, de-interlacing, and frame-rate conversion. It also enables aspect ratio adjustments and color format conversions for optimized output.

High-Quality Audio & Metadata Extraction

Capture embedded audio along with advanced metadata such as timecode (Sony/Canon DSLR), video timing, and channel status data. Supports up to 8 audio channels via SDI.

Broad Software & OS Compatibility

Compatible with Windows, macOS, and Linux, the card works seamlessly with popular software like OBS, VLC, Wirecast, vMix, and more using DirectShow, DirectKS, and V4L2 APIs.

Compact & Efficient Design

The low-profile PCIe x4 design ensures easy installation in compact systems while maintaining low power consumption and high reliability for continuous operation.
