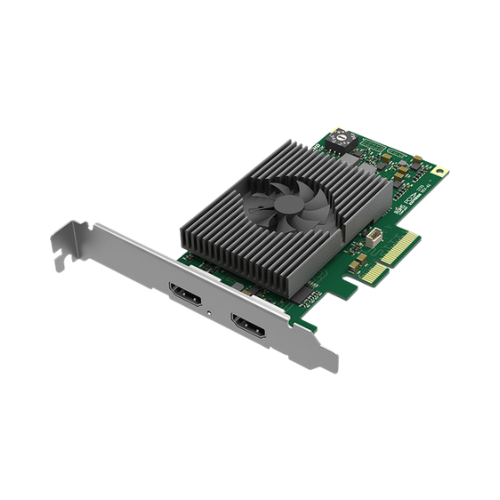

Magewell Pro Capture HDMI 4K Plus LP - Loop Through

Magewell Video Production

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

HDMI 2.0 input with loop-through output
PCIe x4 interface for high-speed capture
Supports up to 4096 × 2160 (DCI 4K) resolution
8-bit and 10-bit video processing
Multiple color-space support (RGB, YCbCr)
Real-time cropping, scaling, and deinterlacing
Frame-rate and aspect-ratio conversion
Embedded HDMI audio (up to 8 channels)
DVI-D input support via optional adapter
Compatible with Windows, macOS, and Linux

Pricing Dhs. 3,529.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

4K Loop-Through Capture Solution

The Magewell Pro Capture HDMI 4K Plus Loop-Through Capture Card enables simultaneous video capture and signal pass-through, making it ideal for live production, monitoring, and streaming workflows.

Advanced HDMI 2.0 Performance

Featuring HDMI 2.0 input and loop output, the card supports DCI 4K and UHD resolutions up to 4096 × 2160. It also supports DVI-D input via an optional adapter for added flexibility.

Professional Video Processing

With powerful onboard processing, the card supports scaling, cropping, deinterlacing, and color format conversion. It ensures high-quality output with support for multiple color spaces and bit depths.

Flexible Capture Formats

The card supports a wide range of capture formats and frame rates, including multiple chroma subsampling formats. It allows users to customize capture settings according to workflow requirements.

Ultra-Low Latency and Synchronization

Designed for real-time performance, the card delivers ultra-low latency and precise AV synchronization, ensuring smooth and accurate video capture.

Wide Compatibility and Integration

Compatible with Windows, Linux, and macOS, the card supports major APIs such as DirectShow, DirectKS, and V4L2, and integrates seamlessly with popular software like OBS, VLC, and vMix.

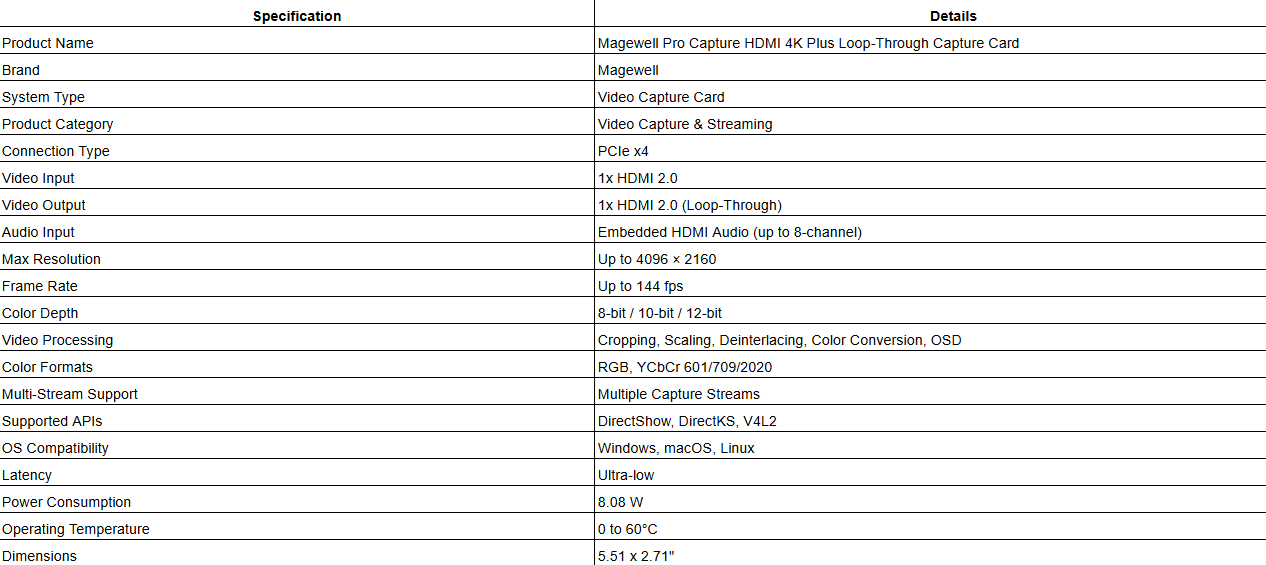

Technical Specifications +

technical specifications
