Compact SDI Capture for Professional Use

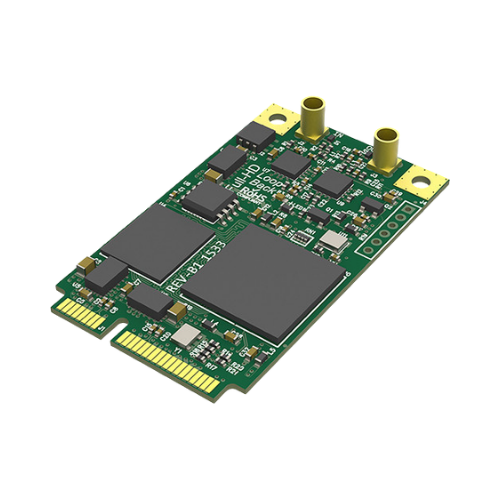

The Magewell Pro Capture Mini SDI SH is a compact mini PCIe capture card designed for capturing SDI video signals in professional and embedded environments. Its small form factor makes it ideal for systems with limited space.

Reliable SDI Input with Loopback

Supporting SD, HD, and 3G-SDI standards, the card ensures stable video capture with integrated loopback functionality. It also supports long cable runs with built-in equalization for reliable signal transmission.

High-Quality Video & Audio Capture

Capture video up to 2048 × 1080 resolution with embedded audio (up to 8 channels). The card supports multiple color formats and up to 10/12-bit color depth for enhanced image quality.

Advanced Video Processing Engine

With dual processing pipelines, the card enables powerful features such as scaling, cropping, de-interlacing, color conversion, and frame rate adjustment for optimized output.

Ultra-Low Latency & Synchronization

Designed for real-time applications, the card delivers ultra-low latency (64 video lines) and precise AV synchronization using a high-resolution hardware clock.

Flexible Integration & Scalability

Supports multiple cards per system and unlimited capture streams per channel. Compatible with major APIs and software, making it suitable for broadcasting, streaming, and custom integrations.
