Magewell Pro Capture Quad SDI Card (4-Channel)

Magewell Video Production

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

4-channel SDI capture (SD/HD/3G-SDI/2K support)
PCIe Gen2 x4 normal-profile interface
Up to 4096 × 2048 resolution support
10-bit and 12-bit color depth processing
Dual video processing pipelines per card
Real-time cropping, scaling, and deinterlacing
Frame-rate and aspect-ratio conversion
Color space conversion (RGB, YCbCr 601/709/2020)
OSD overlay and timestamp support
Ultra-low latency performance
Compatible with Windows, macOS, and Linux

Pricing Dhs. 3,676.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

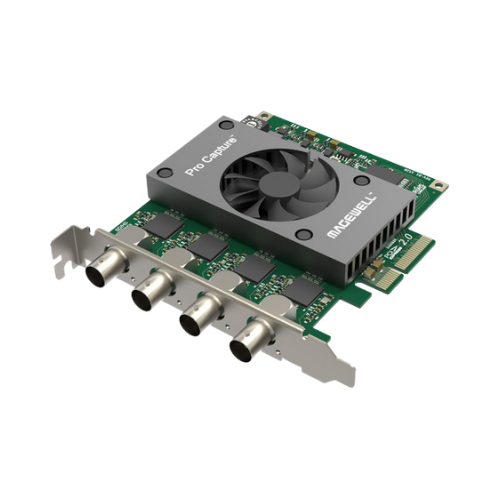

High-Density Quad SDI Capture

The Magewell Pro Capture Quad SDI Card is designed for multi-channel professional video workflows, enabling simultaneous capture of four independent SDI sources on a single PCIe card.

Broadcast-Grade Signal Support

It supports SD, HD, 3G-SDI, and 2K formats with robust signal handling, including long-distance cable support and advanced SDI standards compatibility.

Advanced Video Processing Engine

Each channel benefits from powerful onboard processing, enabling cropping, scaling, deinterlacing, aspect ratio conversion, and color format adjustments with high precision.

Flexible Multi-Stream Architecture

The card supports unlimited capture streams per input channel, with independent configuration for resolution, frame rate, color format, and processing parameters.

Ultra-Low Latency & Synchronization

Built for real-time production environments, the card delivers ultra-low latency performance with hardware timestamping and AV synchronization across channels.

Enterprise-Grade Reliability

Supports multiple cards per system, continuous 24/7 operation, LED status monitoring, and firmware upgrade flexibility for professional deployments.

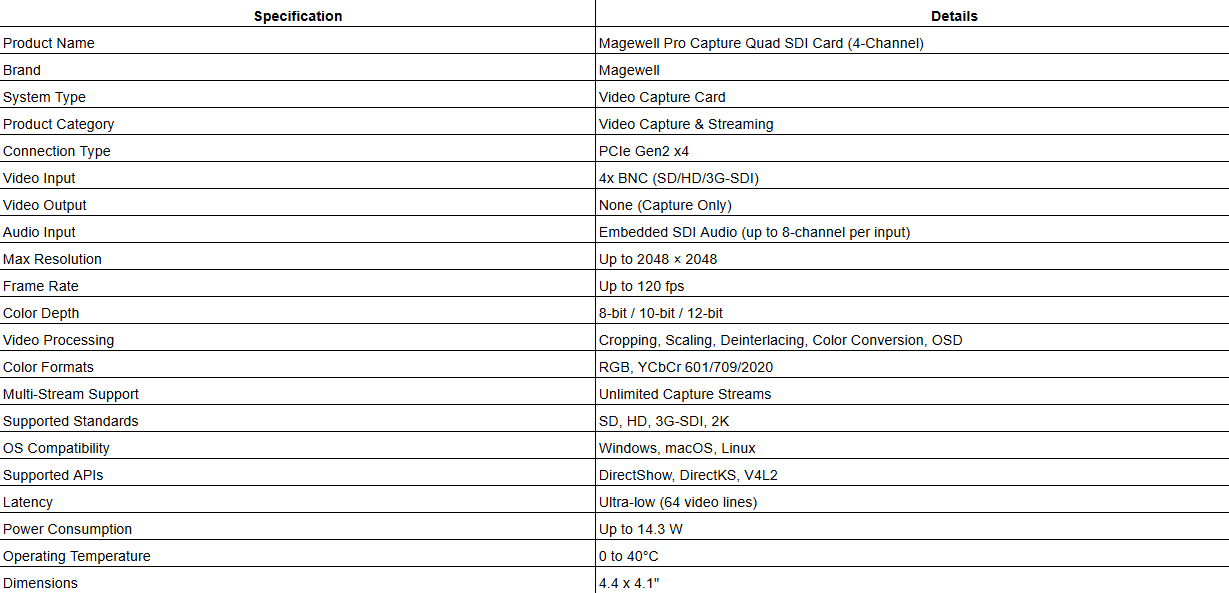

Technical Specifications +

technical specifications

Magewell Pro Capture Quad SDI Card (4-Channel)
