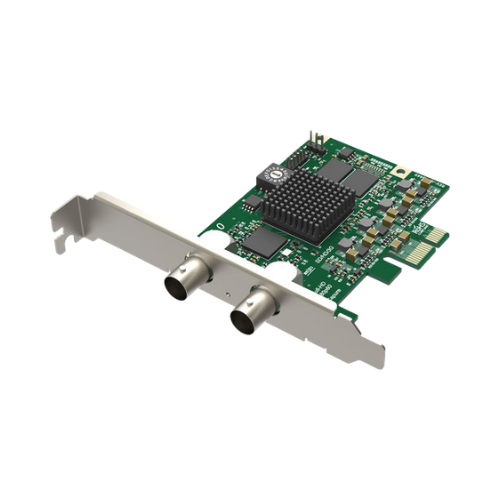

Magewell Pro Capture SDI Card (1-Channel)

Magewell Video Production

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Single-channel SDI capture with embedded audio
1x SDI input and 1x SDI loop-through output
Supports SD, HD, 3G-SDI, and 2K video formats
10-bit and 12-bit color depth processing
Real-time deinterlacing, cropping, and color adjustment
Aspect ratio and up/down conversion support
Signal auto-detection, timecode, and closed caption support
Ultra-low latency performance
Low-profile PCIe Gen2 design
Compatible with Windows, macOS, and Linux

Pricing Dhs. 1,159.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Professional SDI Video Capture

The Magewell Pro Capture SDI Card (1-Channel) is designed for capturing high-quality SDI video signals directly to your system. It supports a wide range of SDI formats including SD, HD, 3G-SDI, and 2K, making it ideal for broadcast and production environments.

Loop-Through Monitoring Capability

With a dedicated SDI loop output, the card allows simultaneous signal monitoring while capturing, ensuring efficient workflow for live production setups.

Advanced Video Processing Engine

Equipped with powerful onboard processing, the card supports scaling, cropping, deinterlacing, aspect ratio conversion, and color format conversion, delivering optimized video output.

High-Quality Signal Support

The card supports multiple color sampling modes and up to 12-bit color depth, ensuring accurate color reproduction and professional-grade video quality.

Flexible Multi-Stream Operation

Users can create unlimited output streams from a single input channel, with independent configuration for resolution, frame rate, and color settings for each stream.

Ultra-Low Latency and Synchronization

Designed for real-time applications, the card provides ultra-low latency along with precise timestamping and AV synchronization using a hardware-based clock.

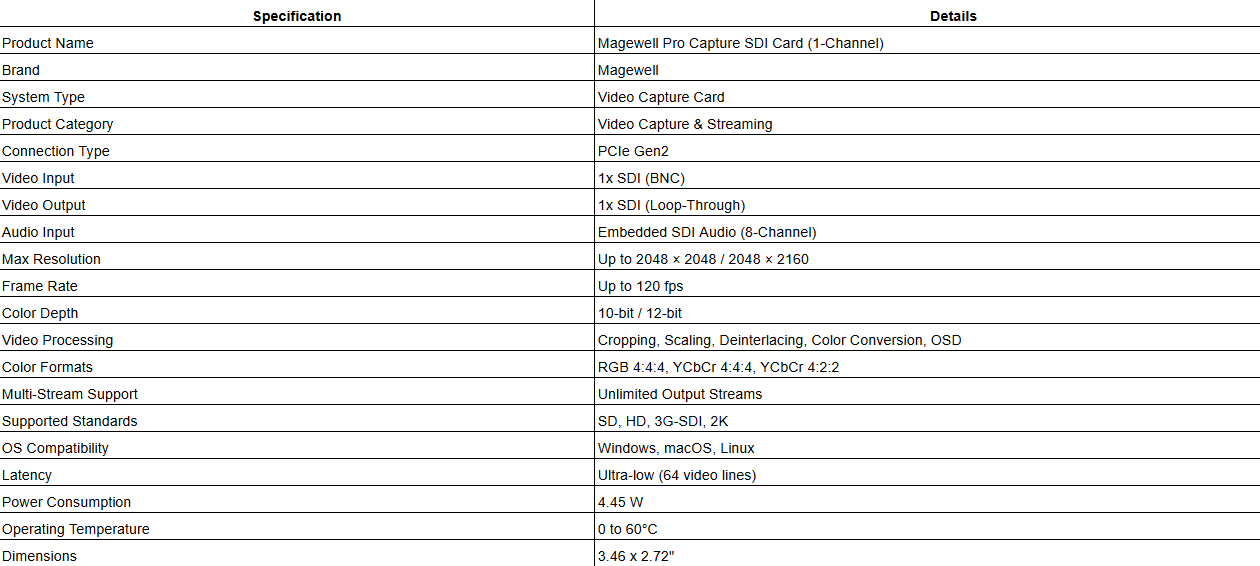

Technical Specifications +

technical specifications
