Professional 12G-SDI to NDI Conversion

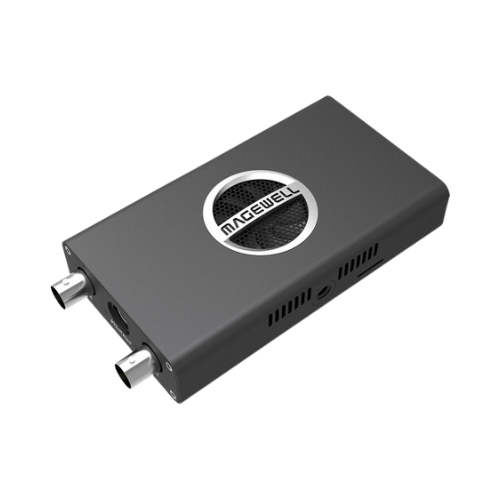

Magewell Pro Convert 12G-SDI 4K Plus is a high-performance converter designed to transform SDI video signals into NDI streams for IP-based workflows. It supports a wide range of SDI formats, making it suitable for broadcast studios, live production, and AV-over-IP environments.

True 4K60 Video Processing

The device supports input resolutions up to DCI 4K at 60fps with 10-bit 4:2:2 color, ensuring high-quality signal acquisition. It encodes NDI output up to 4K60 with 8-bit 4:2:2, delivering smooth and visually accurate streaming performance.

SDI Loop-Through for Monitoring

With a built-in SDI loop-through output, users can monitor the original input signal on a local display while simultaneously streaming via NDI. This is ideal for real-time monitoring in professional production setups.

Efficient IP Workflow Integration

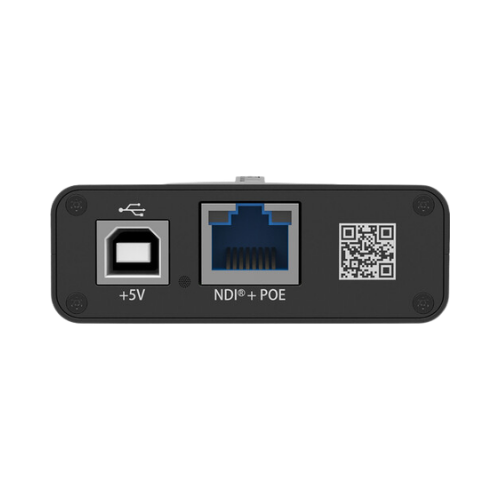

The integrated Gigabit Ethernet port with PoE support allows both power and data transmission through a single cable. This simplifies installation and reduces cable management complexity in studio and field environments.

PTZ Control and Tally Support

The Mini DIN-8 interface supports PTZ camera control, RS-422 communication, and tally signals. This enables better coordination in multi-camera productions and enhances overall workflow efficiency.

Advanced Control and Integration

The encoder features an intuitive web-based interface for configuration, monitoring, and firmware updates. It also supports HTTP-based APIs, allowing integration into custom production systems and automated workflows.
