4K HDMI to NDI Encoding Module

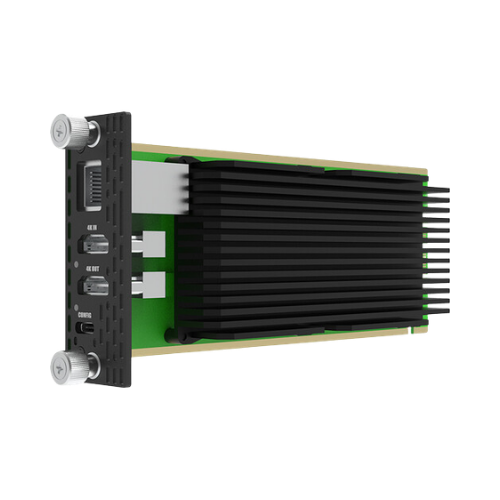

The Magewell Pro Convert HDMI 4K Plus Module is a professional encoding solution designed for the Magewell Modator 2 RU chassis. It captures HDMI 4K signals and converts them into high-quality NDI streams for IP-based production environments.

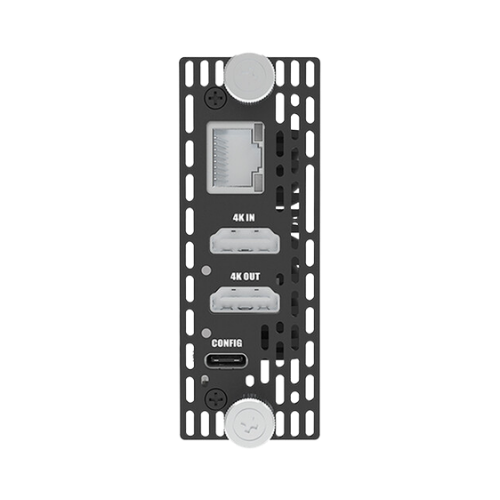

4K Input with Loop-Through

The module supports HDMI input and loop-through up to 4096 × 2160 at 60 fps, allowing users to monitor or pass through signals without interrupting the workflow.

High-Performance NDI Encoding

It encodes video into high-bandwidth NDI streams up to 4K resolution, ensuring high image quality and efficient transmission across IP networks. It also supports flexible output resolutions based on workflow requirements.

Professional Audio Support

With support for up to 8-channel embedded audio via both HDMI and NDI, the module ensures synchronized, high-quality audio for professional broadcasting and AV applications.

Seamless Modator Integration

Designed for the Magewell Modator chassis, the module is hot-swappable and can be managed through the built-in touchscreen, Web UI, or Control Hub for centralized control.

Low Latency and Flexible Control

The module delivers very low latency performance and supports HTTP APIs for custom integration, making it suitable for live production, streaming, and broadcast environments.
