HDMI to NDI Encoding for Modular Systems

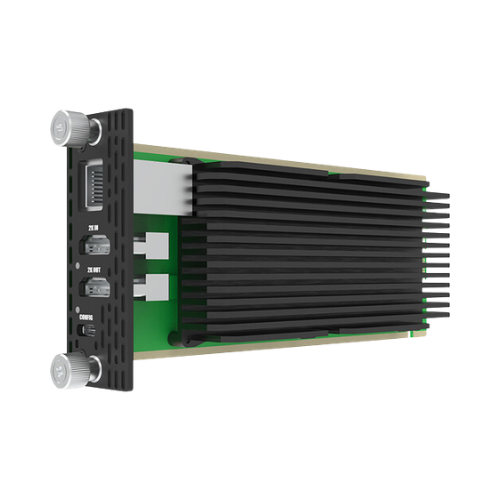

The Magewell Pro Convert HDMI Plus Module is a professional encoding module designed for integration with the Magewell Modator 2 RU chassis. It converts HDMI video signals into high-quality NDI streams for IP-based production and distribution.

4K Input with Loop-Through

The module supports HDMI input and loop-through up to 4096 × 2160, allowing users to monitor or pass through signals while simultaneously encoding them for network streaming.

High-Performance NDI Encoding up to 2K

It encodes video up to 2K resolution (up to 2048 × 2160), delivering high-quality NDI streams suitable for live production, streaming, and broadcast environments.

Professional Audio Support

The module supports up to 8-channel embedded audio via HDMI input and outputs both HDMI loop-through and NDI-embedded audio, ensuring synchronized and high-quality audio transmission.

Seamless Integration with Modator

Designed for the Magewell Modator chassis, this module is hot-swappable and can be controlled through the built-in touchscreen, Web UI, or Control Hub for efficient centralized management.

Low Latency and Flexible Control

With very low latency performance and support for HTTP APIs, the module is ideal for real-time applications and custom AV integrations.
