Modular NDI to HDMI and SDI Conversion

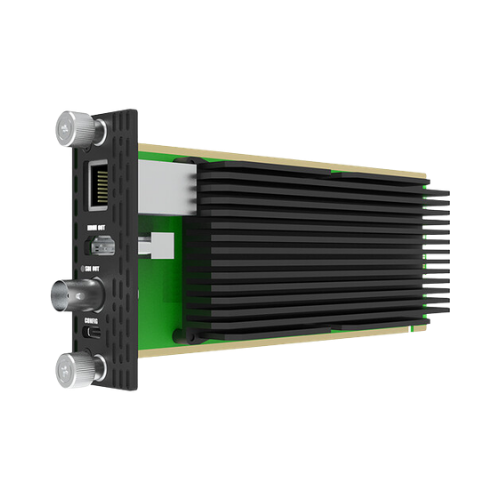

The Magewell Pro Convert NDI to HDMI and SDI Module is a professional decoding solution designed for the Magewell Modator 2 RU chassis. It converts NDI-based IP video streams into both HDMI and SDI outputs simultaneously, enabling flexible AV distribution and monitoring.

Dual Output for Professional Workflows

With support for both HDMI and SDI outputs up to 1080p60, the module is ideal for broadcast environments, live production, and professional AV systems that require multiple output formats.

Reliable 2K NDI Decoding

The module decodes high-bandwidth NDI streams up to 2K resolution and ensures smooth and stable output with very low latency, making it suitable for real-time applications.

Broad Protocol Support

In addition to NDI and NDI|HX variants, the device supports multiple streaming protocols such as RTSP, HTTP, HLS, RTMP, and MPEG-TS over SRT/RTP/UDP, ensuring compatibility across diverse IP workflows.

Seamless Modator Integration

Designed specifically for the Magewell Modator chassis, the module is hot-swappable and can be controlled through the built-in touchscreen interface, Web GUI, or Control Hub for centralized device management.

Professional Audio and Control Features

It supports up to 8-channel embedded audio over HDMI and SDI at 48 kHz and offers advanced features such as HTTP API integration, image flip, and safe area controls for professional installations.
