Magewell Ultra Encode SDI Plus Module

Magewell Video Production

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Hot-swappable video encoder module
Designed for Magewell Modulator 2 RU chassis
Encodes NDI and IP video up to DCI 4K30
6G-SDI input with SDI loop-through
Supports up to 6 simultaneous streaming sessions
HDMI input support with loop-through capability
16-channel SDI embedded audio and 8-channel NDI audio
Built-in 128GB storage with USB and NAS recording support
USB-C configuration port and USB-A expansion port
Wide protocol support, including RTMP, SRT, NDI|HX3, HLS
Very low latency for live production workflows

Pricing Dhs. 2,410.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Professional SDI to NDI/IP Encoding Module

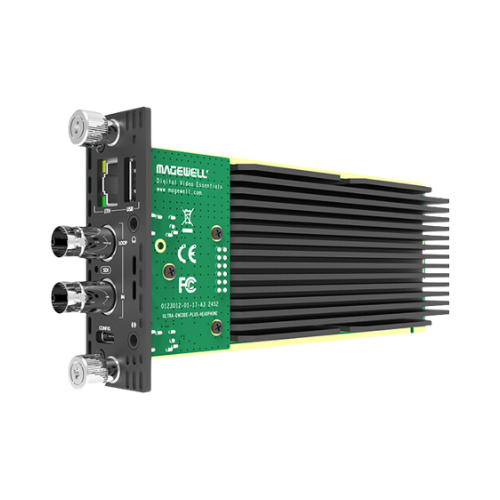

The Magewell Ultra Encode SDI Plus Module is a high-performance encoding solution designed for the Magewell Modator 2 RU chassis. It captures 6G-SDI video signals and converts them into NDI and IP streams, making it ideal for modern broadcast and AV-over-IP environments.

4K SDI Input with Loop-Through

The module supports up to DCI 4K30 input via 6G-SDI along with loop-through output, allowing simultaneous monitoring and encoding without signal interruption.

Multi-Stream Encoding and Distribution

With support for up to six simultaneous streaming sessions, the module enables distribution to multiple platforms such as YouTube, Facebook, Twitch, and custom IP destinations.

Integrated Recording Capabilities

The device features built-in 128GB storage and supports recording to USB drives and network-attached storage (NAS), ensuring flexible recording and backup options during live production.

Advanced Audio Support

It supports up to 16-channel SDI embedded audio input and outputs 8-channel NDI embedded audio, along with additional 3.5mm line input/output for external audio sources.

Flexible Control and Integration

The module can be configured and managed via the Modator touchscreen, Web UI, or Control Hub. It also supports scheduling, HTTP APIs, and remote workflow integration.

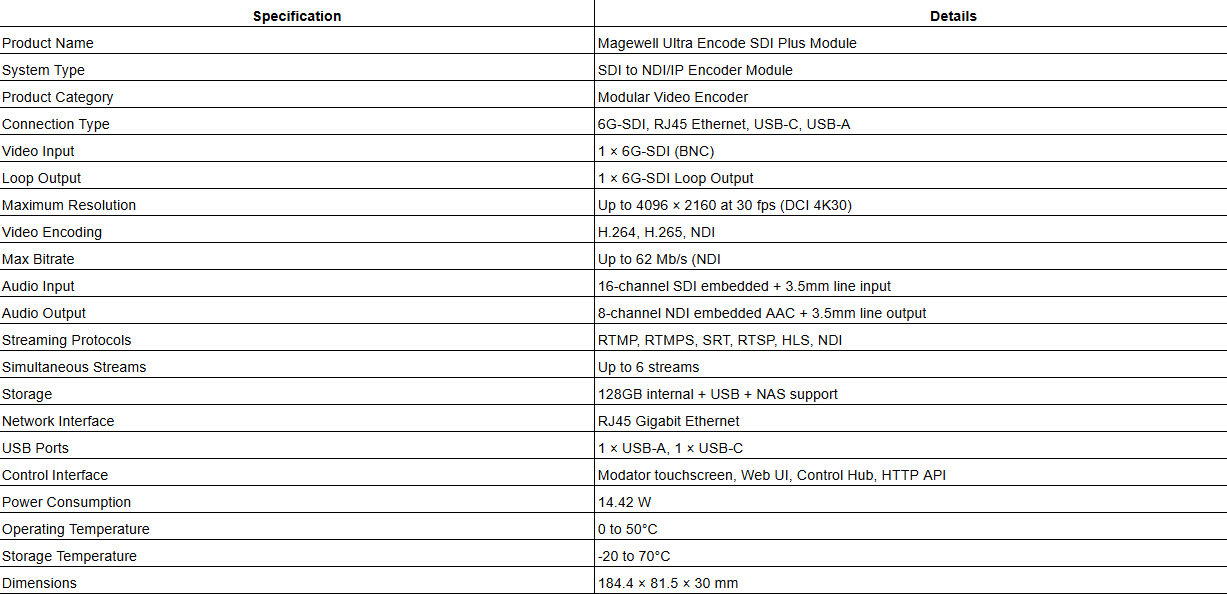

Technical Specifications +

technical specifications
