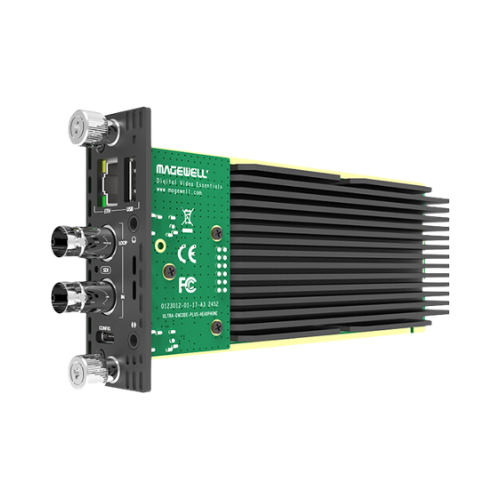

Magewell Ultra Encode SDI Plus Module

Magewell Video Production

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Hot-swappable video encoder module
Designed for Magewell Modulator 2 RU chassis
Encodes NDI and IP video up to DCI 4K30
6G-SDI input with SDI loop-through output
HDMI input with loop-through support
Supports up to 6 simultaneous streaming sessions
16-channel SDI embedded audio and 8-channel NDI audio
Built-in 128GB storage with USB and NAS recording support
USB-C configuration port and USB-A expansion
Wide protocol support, including RTMP, SRT, NDI|HX3, HLS
Ultra-low latency performance

Pricing Dhs. 2,410.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Professional SDI to NDI/IP Encoding Solution

The Magewell Ultra Encode SDI Plus Module is a high-performance encoder designed for integration into the Magewell Modator 2 RU chassis. It converts 6G-SDI video signals into NDI and IP streams, making it suitable for professional broadcast and AV-over-IP workflows.

4K SDI Input with Loop-Through

The module supports up to DCI 4K30 input via 6G-SDI and provides loop-through output, allowing simultaneous signal monitoring and encoding without disruption.

Multi-Stream Encoding Capability

With support for up to six simultaneous streaming sessions, the module enables broadcasting to multiple platforms such as YouTube, Facebook, Twitch, and other IP destinations.

Integrated Recording and Storage

It features built-in 128GB storage and supports recording to USB drives and network-attached storage (NAS), offering flexible recording and backup options for live production.

Advanced Audio Processing

The module supports up to 16-channel SDI embedded audio input and outputs 8-channel NDI embedded audio. It also includes 3.5mm audio input and output for additional flexibility.

Flexible Control and Integration

Users can configure and manage the module via the Modator touchscreen, Web UI, or Control Hub. It also supports scheduling, HTTP APIs, and remote management for advanced workflows.

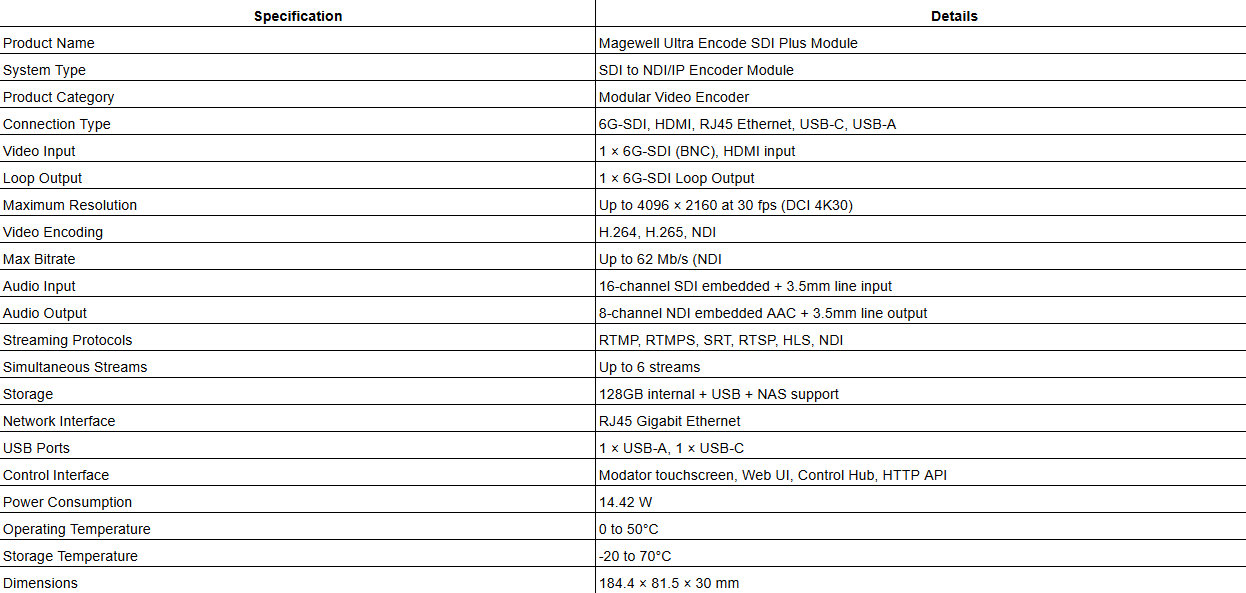

Technical Specifications +

technical specifications
