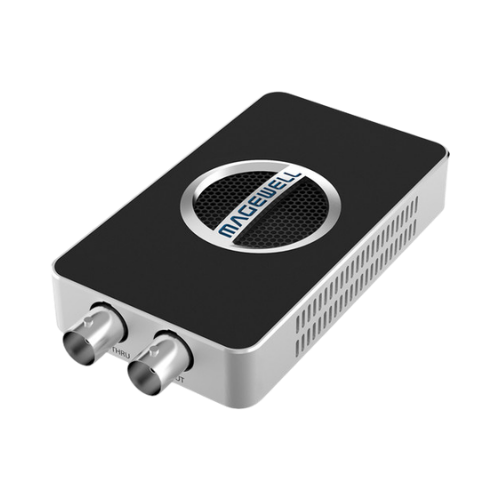

Magewell USB Capture SDI 4K Plus - One-channel 4K capture device

Magewell USB Capture SDI 4K Plus - One-channel 4K capture device

Magewell Video Production

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Captures up to DCI 4K (4096 × 2160) resolution
6G-SDI input with loop-through for real-time monitoring
Supports RGB 4:4:4, YCbCr 4:4:4 & 4:2:2 formats
10-bit / 12-bit color depth processing
USB 3.0 high-speed computer interface
3.5mm audio input and output (embedded/external audio handling)
Compatible with Windows, Mac, Linux, and Chrome OS
24/7 continuous operation support
Built-in scaling, deinterlacing, and image processing tools
Plug-and-play UVC standard support

Pricing Dhs. 2,005.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Professional 4K SDI Capture Solution

The Magewell USB Capture SDI 4K Plus is a high-performance capture device designed for professional video production, streaming, and broadcasting workflows. It enables direct capture of SDI signals up to DCI 4K resolution through a USB 3.0 interface without requiring external power.

Flexible Connectivity & Monitoring

With a 6G-SDI input and loop-through output, users can capture and simultaneously monitor video feeds in real time. The additional 3.5mm audio ports allow flexible integration of external audio sources or extraction of embedded audio.

Advanced Video Processing Engine

The device includes powerful onboard processing features such as scaling, deinterlacing, frame rate conversion, cropping, and color space conversion. These ensure optimized output for various production environments.

Broad System Compatibility

It supports Windows, macOS, Linux, and Chrome OS platforms and works with popular software such as OBS, vMix, Wirecast, VLC, and more via UVC and standard capture APIs.

Reliable 24/7 Operation

Engineered for continuous use, the device is suitable for live broadcast setups, control rooms, and professional streaming environments with stable long-term performance.

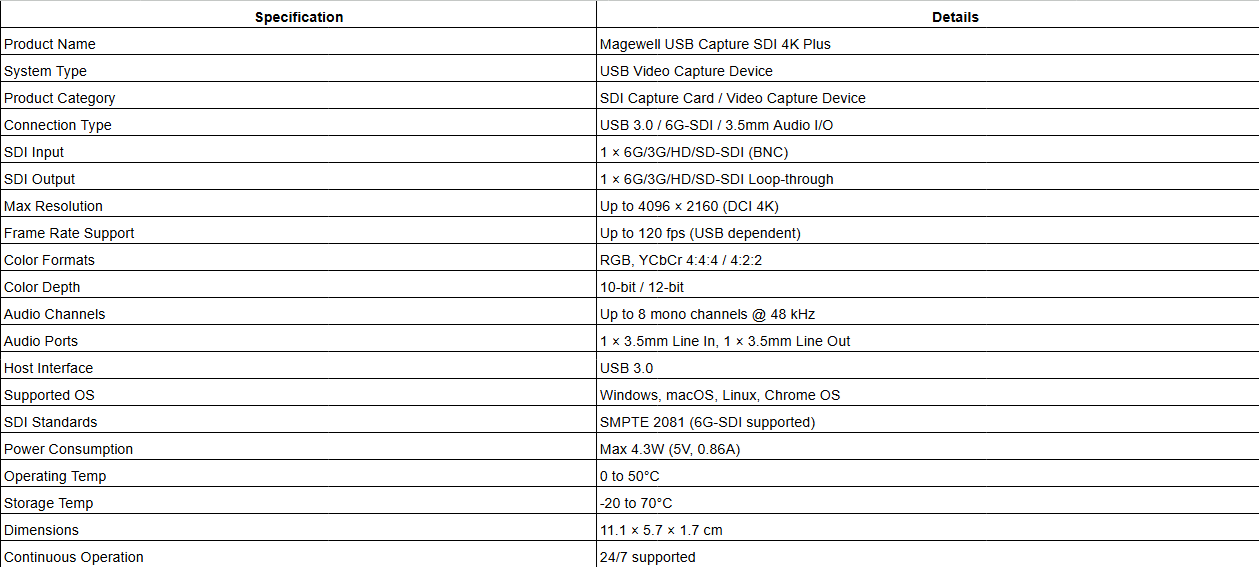

Technical Specifications +

technical specifications
