Mercury Interface Unit (MIU) – 700-25-06

Mercury Interface Unit (MIU) – 700-25-06

Clear-Com Matrix

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Multi-channel IP gateway and audio processing unit
Supports up to 32 physical interface ports via expansion boards
Handles radios, telephony, analog audio, and Cross Domain Solutions
Supports up to 64 simultaneous IP audio channels
Hosts up to 64 virtual panels across multiple platforms
SIP-enabled with support for up to 64 endpoints
Enables Radio-over-IP (RoIP) across IP networks
Compatible with POTS and traditional telephony systems
Supports multicast audio distribution with multiple codecs
Modular design with expandable interface boards
Operates as a standalone or within a peer-to-peer Mercury network

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Overview

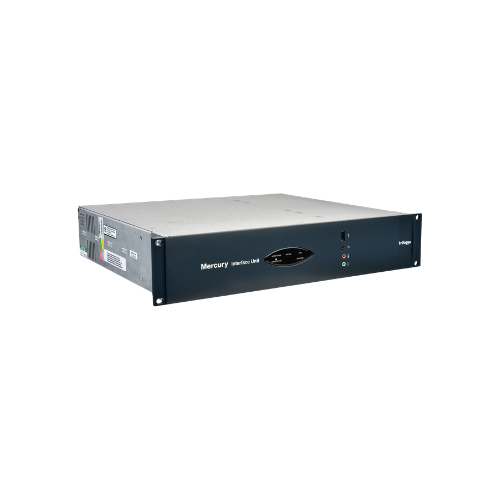

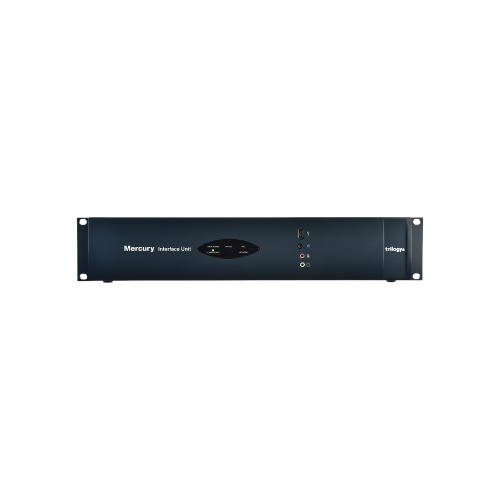

The Mercury Interface Unit is a 2RU rack-mounted device designed to provide extensive interfacing capabilities between radios, telephony systems, analog audio equipment, and IP networks. It serves as a central gateway within the Mercury communication ecosystem.

Functionality

The MIU enables seamless communication across multiple systems by converting and routing audio between different formats. It supports SIP connectivity, VoIP communication, and radio integration through RoIP, making it highly versatile for complex environments.

Architecture

Built on a peer-to-peer distributed architecture, the MIU can operate independently or as part of a larger Mercury network. This allows scalable deployments with high resilience and no reliance on a single central controller.

Expansion Capability

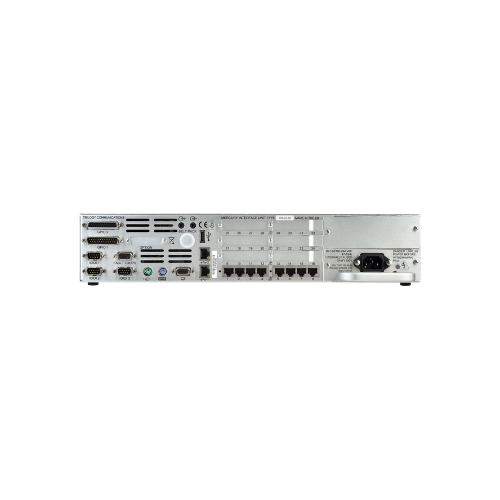

The unit supports up to four expansion boards, including Radio Interface Boards (RIB), Audio Expansion Boards (AEB), Telephone Interface Boards (FXO/FXS), and Mercury Voice Bridge modules, enabling up to 32 physical ports.

Integration

The MIU integrates with Mercury MCU and other Mercury devices while also supporting SIP endpoints, PBX systems, and traditional telephony hardware. It is ideal for bridging legacy systems with modern IP-based infrastructures.

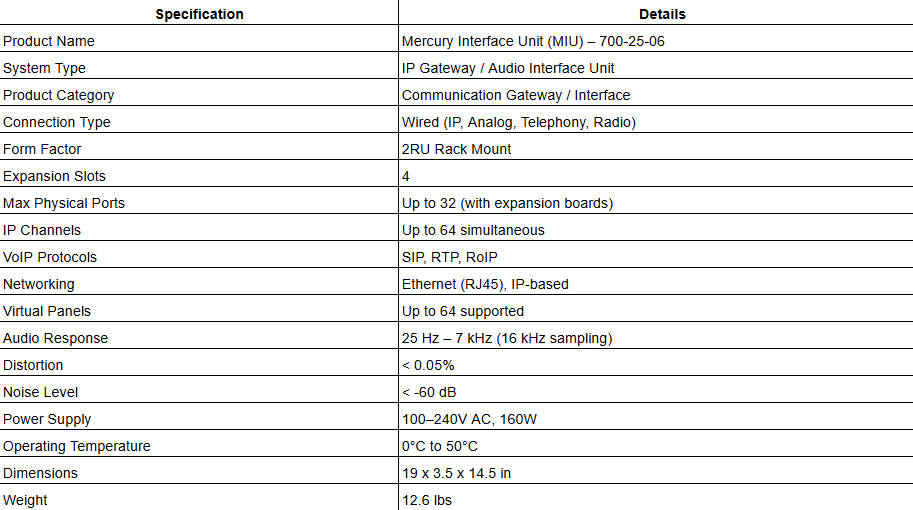

Technical Specifications +

technical specifications
