Overview

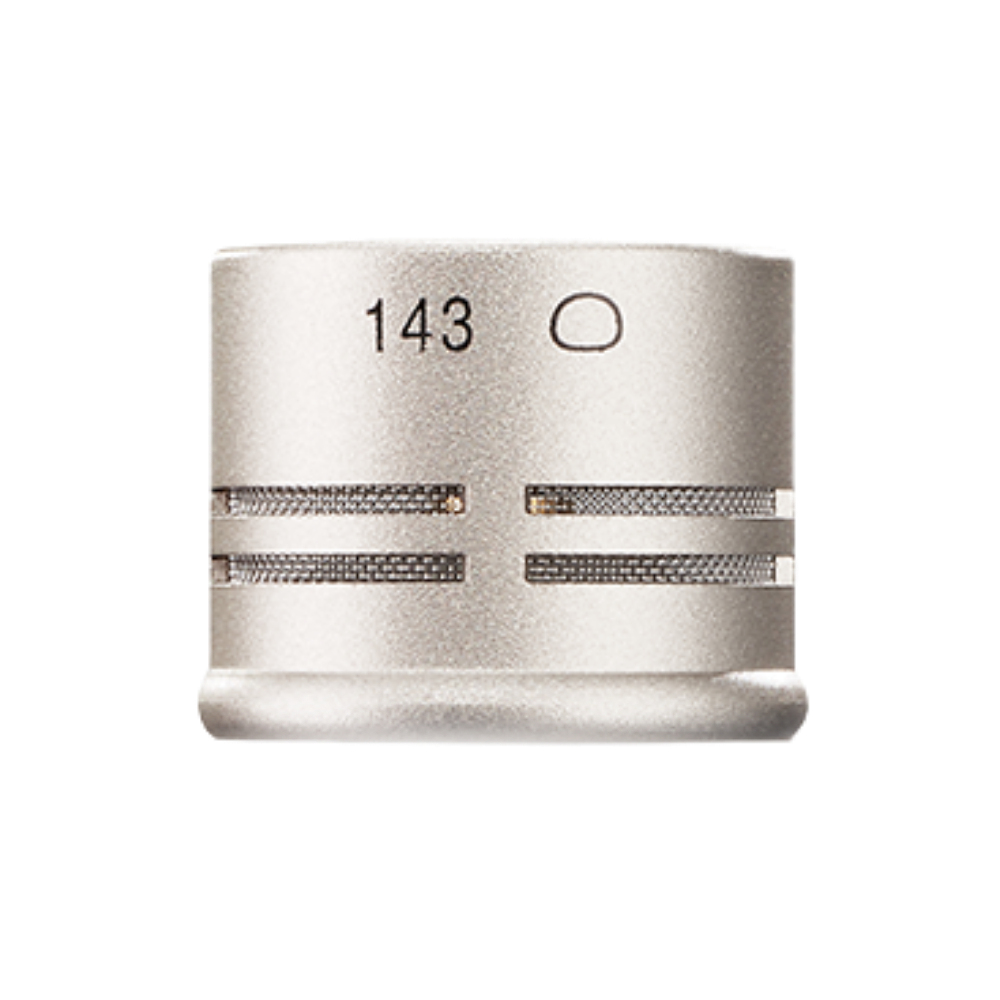

The Neumann KK 143 with KM A is a premium modular small-diaphragm condenser microphone system featuring a wide cardioid condenser capsule and the KM A analog output stage. Designed for exceptionally natural sound reproduction, the KK 143 provides smooth off-axis response, excellent spatial imaging, and outstanding transparency. Combined with the transformerless KM A output stage, it delivers low self-noise, wide dynamic range, and reliable performance for professional studio recording, orchestral music, broadcast, and acoustic applications.

Relevant Product Features

The KK 143 utilizes a pressure-gradient transducer with a wide cardioid pickup pattern. Compared to a standard cardioid microphone, it offers a broader acceptance angle while maintaining excellent directional control, making it ideal for ensembles, solo instruments, choirs, and ambient recording. Its off-axis frequency response remains highly consistent up to approximately ±90°, ensuring natural tonal balance across the recording field.

The transformerless KM A analog output stage operates from standard 48 V phantom power and incorporates a switchable 10 dB pre-attenuation pad, allowing the microphone system to handle sound pressure levels up to 148 dB without audible distortion. The advanced electronics also provide reduced self-noise, extended dynamic range, and excellent immunity to electromagnetic interference.

As part of Neumann's KM modular microphone family, the KK 143 capsule can be detached from the KM A output stage and remotely positioned using compatible extension cables and accessories over distances of up to 100 meters, making it ideal for concert halls, broadcast installations, and complex recording environments.

Manufactured in Germany, the KK 143 with KM A combines Neumann's renowned acoustic precision with a flexible modular design suitable for the most demanding professional recording applications.
