Overview

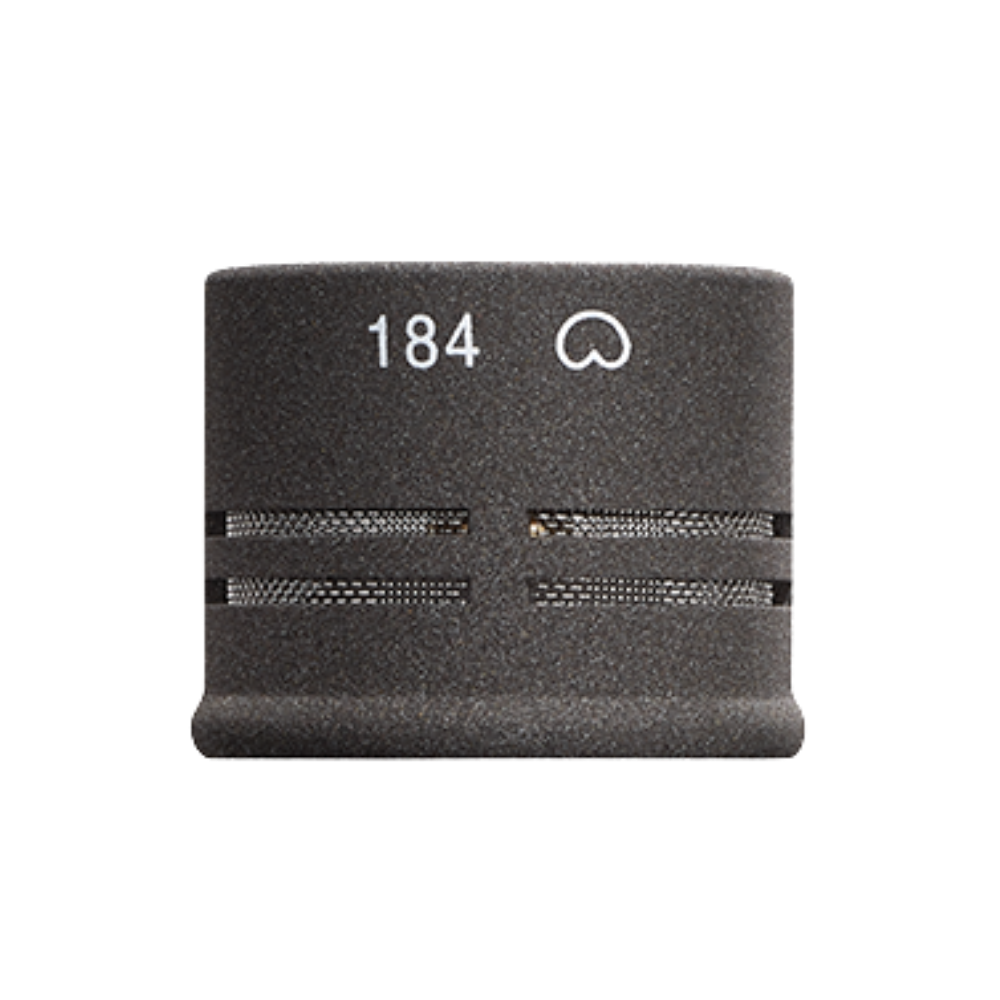

The Neumann KK 184 with KM A is a premium modular small-diaphragm condenser microphone system combining the acclaimed KK 184 cardioid condenser capsule with the transformerless KM A analog output stage. Based on the legendary KM 184, this modular configuration delivers exceptional clarity, fast transient response, low self-noise, and outstanding directional control. It is ideally suited for professional studio recording, broadcast production, live sound, orchestral recording, and acoustic instrument applications where accurate sound reproduction is essential.

Relevant Product Features

The KK 184 employs a pressure-gradient cardioid condenser capsule with a slight presence boost above approximately 9 kHz, providing exceptional detail, articulation, and natural tonal balance. Its cardioid pickup pattern effectively minimizes off-axis noise while maintaining smooth frequency response, making it an excellent choice for vocals, piano, strings, percussion, drum overheads, choirs, and acoustic instruments.

The KM A analog output stage utilizes Neumann's transformerless circuitry and operates from standard 48 V phantom power. It incorporates a switchable 10 dB pre-attenuation pad, allowing the microphone system to handle sound pressure levels up to 150 dB while maintaining extremely low distortion, wide dynamic range, and excellent immunity to electromagnetic interference.

As part of Neumann's modular KM microphone family, the KK 184 capsule can be detached from the KM A output stage and used with compatible extension cables and accessories for remote capsule placement over distances of up to 100 meters, providing exceptional installation flexibility for studio and broadcast environments.

Manufactured in Germany, the KK 184 with KM A combines Neumann's renowned engineering, reliability, and sonic precision with the flexibility of a professional modular microphone system.
