Overview

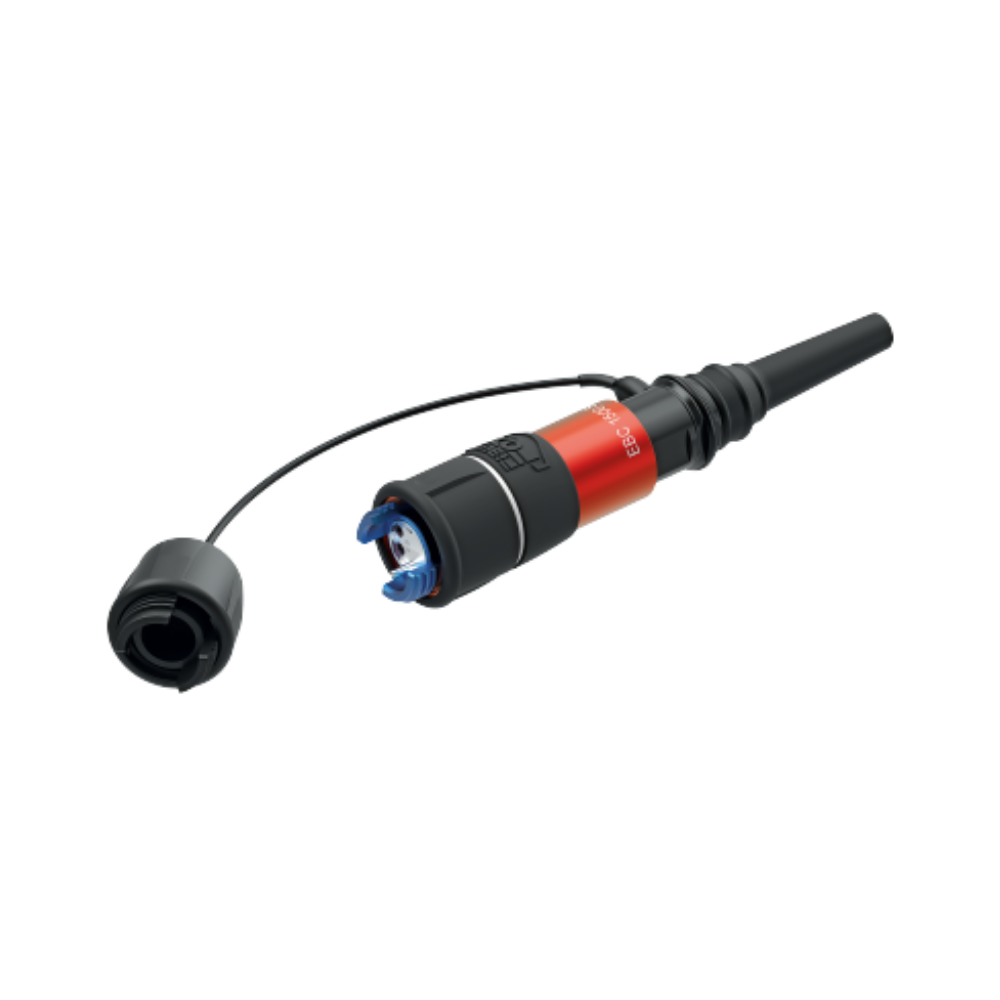

The Neutrik FIBERFOX EBC15 2CH is a pre-assembled expanded beam fiber optic cable engineered for the most demanding professional environments. Featuring a 2-channel hermaphroditic expanded beam connector, it is compatible with all connectors built to the MIL-DTL-83526 standard, making it ideal for broadcast, defense, railway, petrochemical, networking, and live event applications. The cable is available in both single-mode and multimode versions.

Professional Fiber Performance

Using expanded beam technology and precision optical alignment, the FIBERFOX EBC15 2CH delivers exceptional immunity to dust, mud, water, and other contaminants while maintaining reliable optical performance. Its hermaphroditic design eliminates the need for separate male and female connectors or adapters, allowing fast deployment and direct cable extensions. The connector is rated IP68 in both mated and unmated conditions and supports more than 10,000 mating cycles without maintenance.

Durable Professional Construction

Built for extreme field deployment, the connector features a hard-anodized aluminum shell, steel insert, EPDM rubber boot, brass strain relief, and a rugged flame-retardant PUR tactical cable. The cable is halogen-free, bend tolerant, and designed to withstand harsh mechanical conditions including heavy vibration, impact, compression, and repeated field use.

Applications

•
  Broadcast and outside broadcast (OB)

•
  Live event production

•
  Military and defense communications

•
  Railway communication systems

•
  Petrochemical facilities

•
  Industrial and tactical fiber networks
