Overview

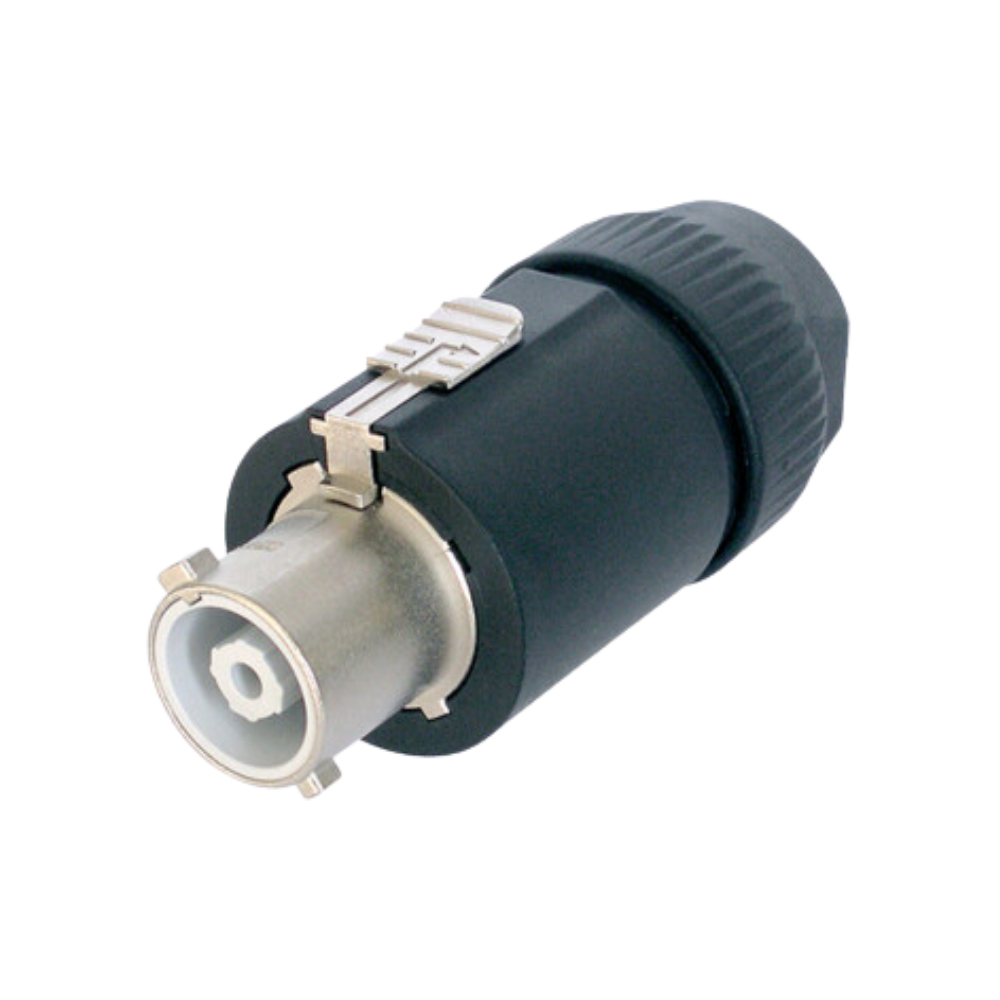

The Neutrik NAC3FC-HC is a powerCON 32A female cable connector engineered for high-current professional AC power distribution systems. Designed as a robust locking single-phase connector, it delivers dependable power connections for professional lighting, audio, broadcast, and industrial installations. This connector is intended for applications requiring up to 32 A current capacity and is not designed for connection or disconnection under load.

Professional Power Performance

Rated for 32 A at 250 V AC, the NAC3FC-HC features phase, neutral, and protective earth contacts with a premating ground contact for enhanced safety. The Quick Lock mechanism prevents accidental disconnection during operation. It complies with IEC 62368-1 for applications up to 4000 W and uses screw terminals for conductors from 2.5 to 6.0 mm² (AWG 14–10).

Durable Professional Construction

Built for demanding environments, the NAC3FC-HC features a rugged polyamide housing, silver-plated brass contacts, durable strain relief, and a heavy-duty Quick Lock mechanism rated for more than 1,000 mating cycles. Its robust construction ensures reliable long-term operation in touring, rental, and fixed power installations.

Applications

•
  Professional stage lighting

•
  Live sound systems

•
  Broadcast equipment

•
  High-current power distribution

•
  Touring and rental systems

•
  Industrial power installations
