Overview

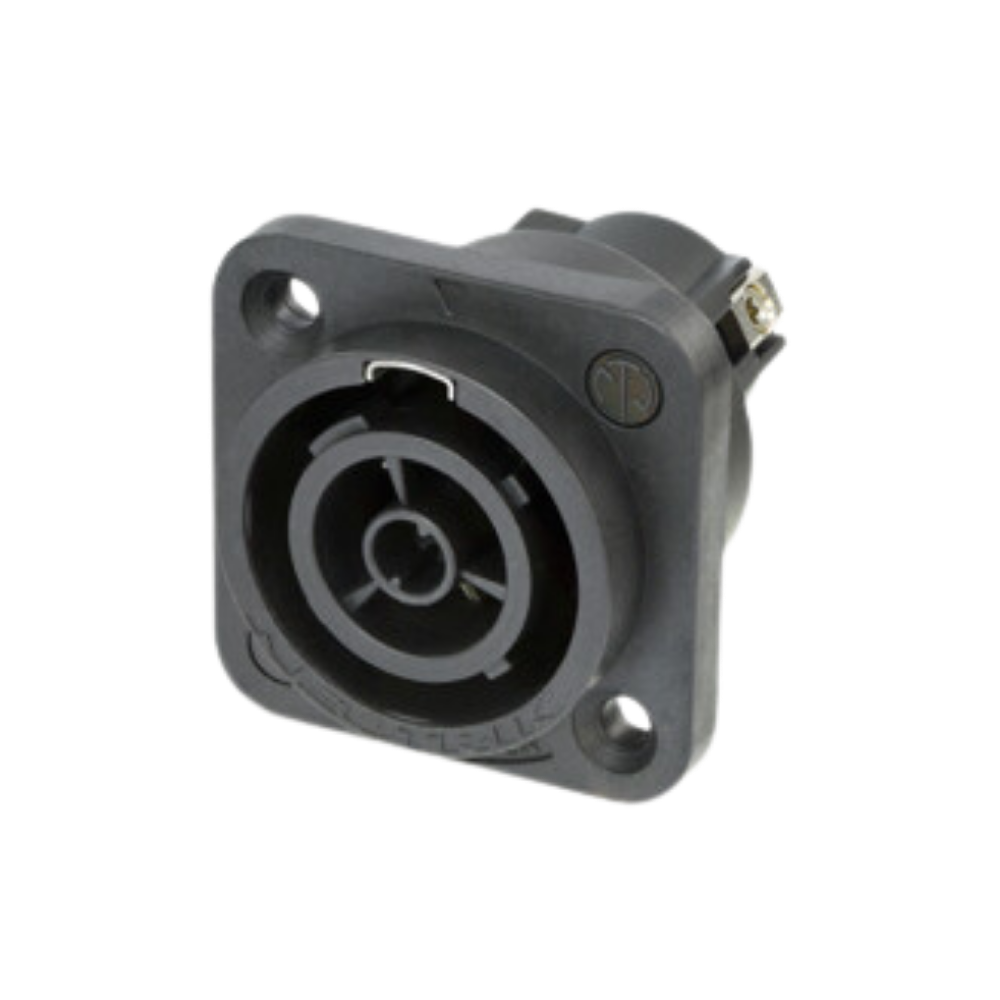

The Neutrik NAC3FPX-ST-TOP is a powerCON TRUE1 TOP female chassis connector designed for professional AC power distribution in demanding indoor and outdoor environments. Configured as a Power IN appliance outlet, it features integrated screw terminals for secure field wiring and a rugged locking interface for reliable power connections.

Professional Power Performance

Rated for 16 A at 250 V AC (20 A UL), the NAC3FPX-ST-TOP features Circuit Breaking Capability (CBC), allowing safe connection and disconnection under load. When used with the optional SCNAC-FPX sealing cover, it provides IP65 and UL50E Type 4 protection in the mated condition or with the protective cap closed, making it ideal for harsh outdoor environments.

Durable Professional Construction

Built for long-term reliability, the connector features a UV-resistant high-impact housing, silver-plated contacts, stainless steel locking components, and an easy-to-use twist-lock mechanism. The integrated screw terminals provide a secure and serviceable wiring solution for professional equipment manufacturers and installers.

Applications

•
  Professional stage lighting

•
  Broadcast equipment

•
  Live sound systems

•
  Outdoor AV installations

•
  Touring and rental systems

•
  Power distribution panels
