Overview

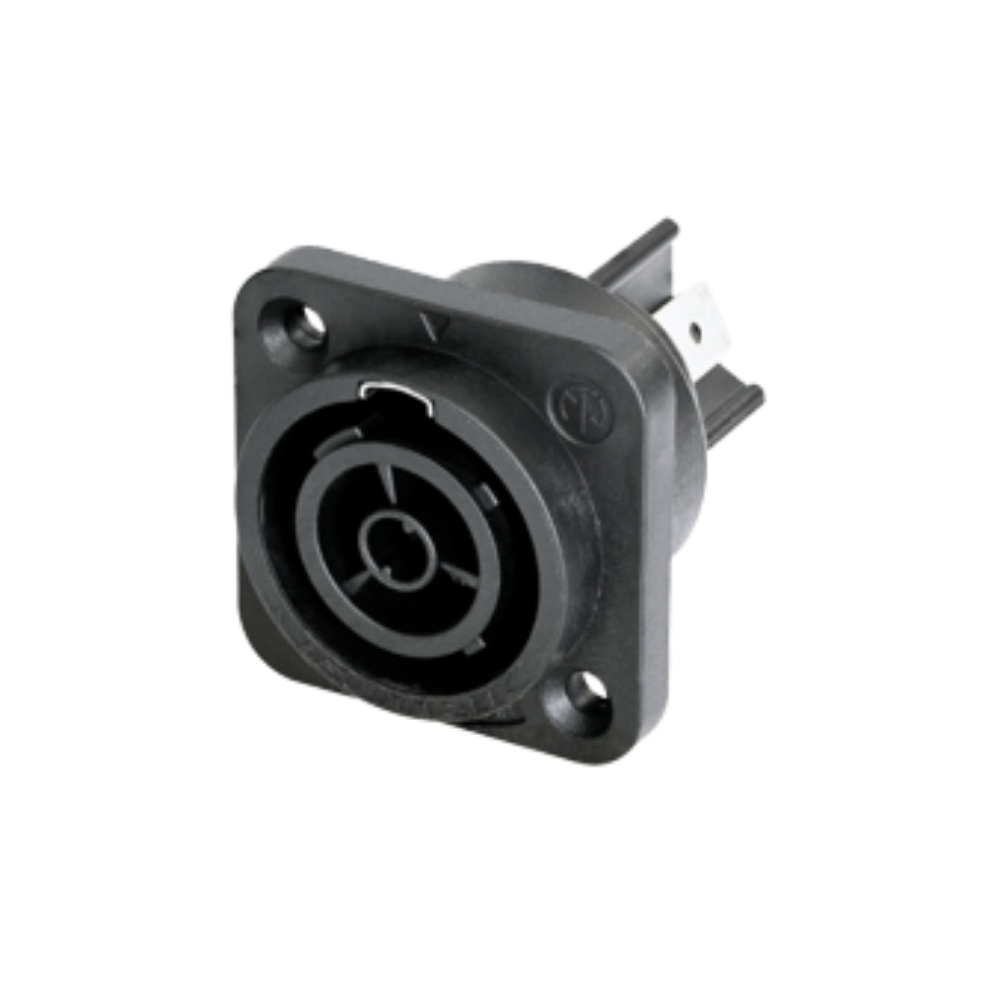

The Neutrik NAC3FPX-TOP is a powerCON TRUE1 TOP female chassis connector designed for professional AC power distribution in demanding indoor and outdoor environments. Configured as a Power IN appliance inlet, it features 1/4-inch flat tab terminals and a secure locking mechanism for safe and reliable power connections.

Professional Power Performance

Rated for 16 A at 250 V AC (20 A UL), the NAC3FPX-TOP features Circuit Breaking Capability (CBC), allowing safe connection and disconnection under load. When used with the optional SCNAC-FPX sealing cover, it provides IP65 and UL50E Type 4 protection in the mated condition or with the protective cap closed, making it ideal for outdoor installations.

Durable Professional Construction

Engineered for harsh environments, the connector uses UV-resistant, high-impact polyamide housing, silver-plated contacts, stainless steel locking components, and a robust twist-lock mechanism rated for more than 5,000 mating cycles. Its heavy-duty construction ensures dependable long-term operation in touring, rental, broadcast, and permanent installations.

Applications

•
  Professional stage lighting

•
  Broadcast equipment

•
  Live sound systems

•
  Outdoor AV installations

•
  Touring and rental systems

•
  Power distribution panels
