Overview

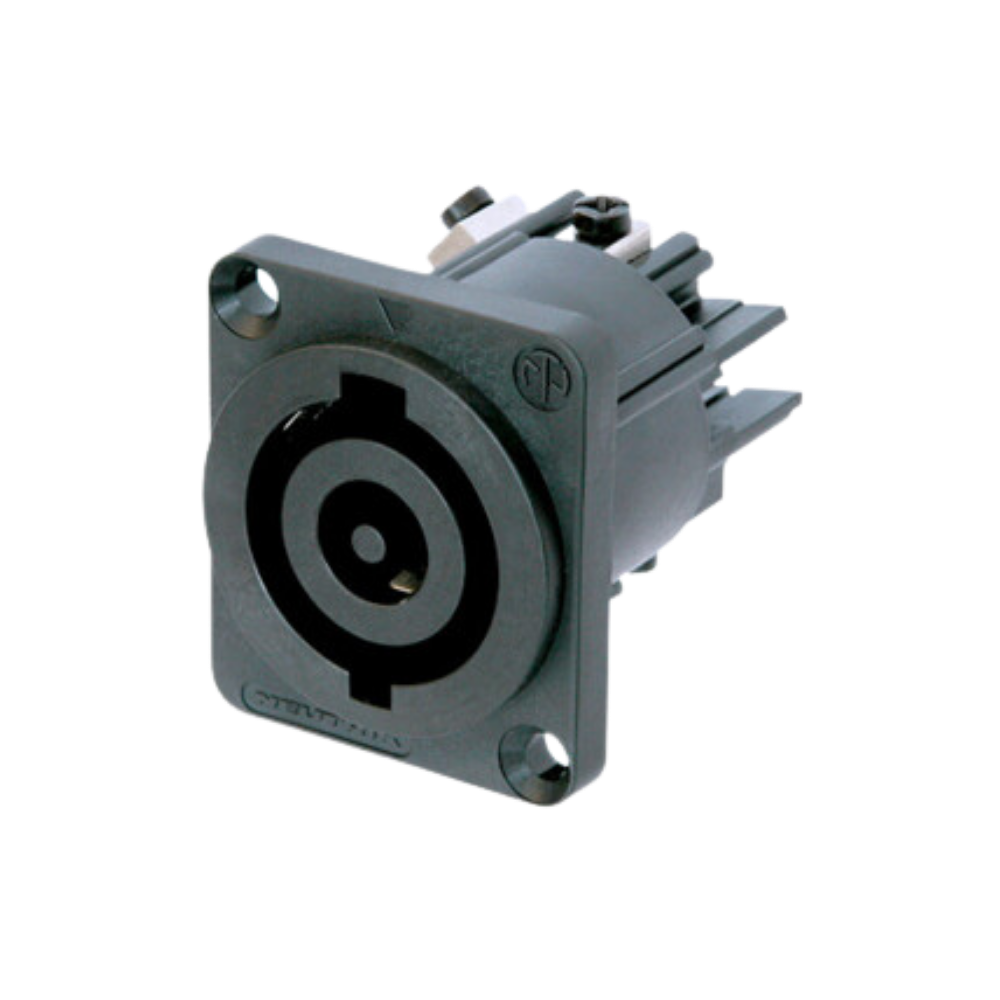

The Neutrik NAC3FPX-TOP is a powerCON TRUE1 TOP female chassis connector designed for professional AC power distribution in demanding indoor and outdoor environments. Configured as a Power IN appliance inlet, it features a locking single-phase AC connection with 1/4-inch flat tab terminals, making it ideal for professional lighting, broadcast, live sound, and AV equipment.

Professional Power Performance

Rated for 16 A at 250 V AC (20 A UL), the NAC3FPX-TOP features Circuit Breaking Capability (CBC), allowing safe connection and disconnection under load. When used with the optional sealing cover, it provides IP65 protection in the mated condition, making it suitable for outdoor and harsh-environment installations.

Durable Professional Construction

Built for long-term reliability, the connector features a rugged UV-resistant housing, silver-plated contacts, stainless steel locking components, and a durable D-size panel-mount design. The secure twist-lock mechanism is engineered for thousands of mating cycles, ensuring dependable performance in touring, rental, broadcast, and permanent installations.

Applications

•
  Professional stage lighting

•
  Broadcast equipment

•
  Live sound systems

•
  Outdoor AV installations

•
  Touring and rental systems

•
  Power distribution panels
