Overview

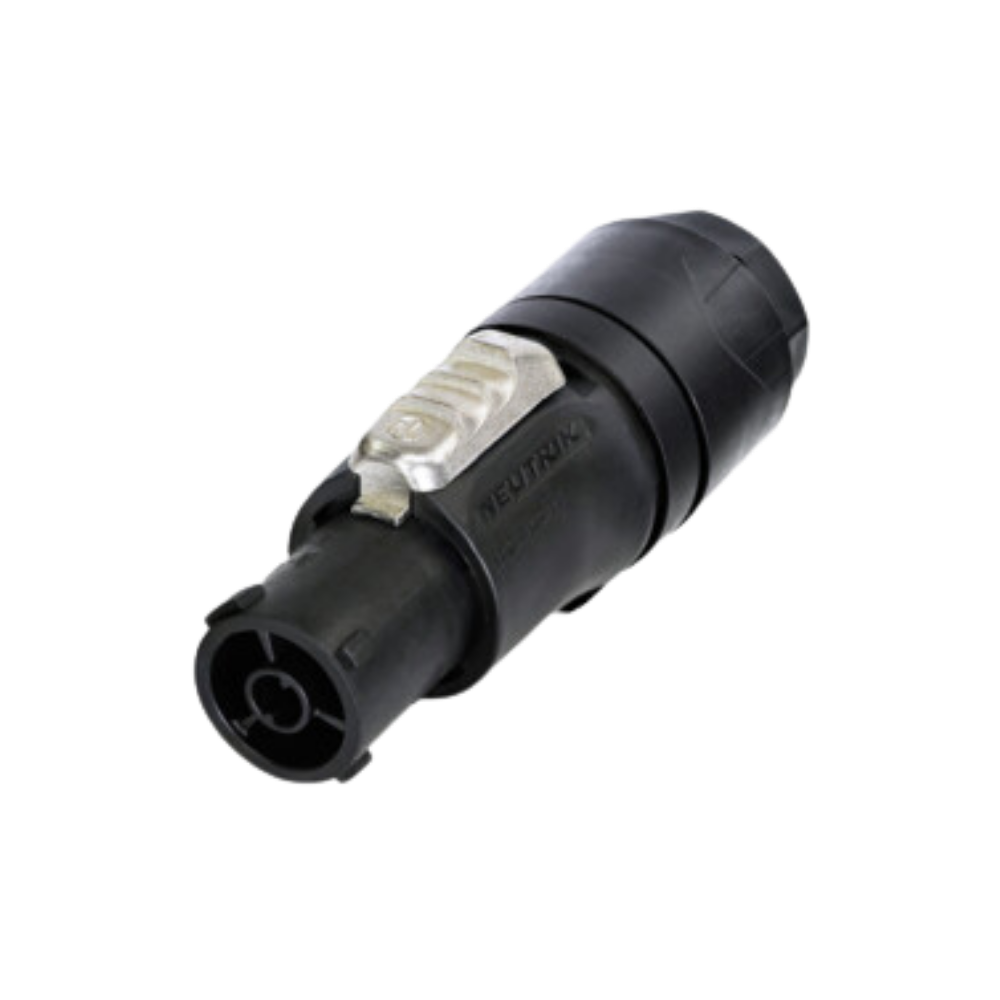

The Neutrik NAC3FX-W-TOP-L is a powerCON TRUE1 TOP female cable connector designed for professional AC power connections using large-diameter power cables. Keyed for Power IN, it provides a secure locking single-phase power connection with screw terminals and is the direct predecessor to the NAC3F-TRUE1-L. It is specifically designed for cable diameters from 10 mm to 16 mm, making it ideal for heavy-duty outdoor power applications.

Professional Power Performance

Rated for 16 A at 250 V AC (20 A USA), the NAC3FX-W-TOP-L features Circuit Breaking Capability (CBC), allowing safe connection and disconnection under load. When fully mated, it provides IP65 protection against dust and water ingress, ensuring reliable operation in demanding outdoor and entertainment environments. It is certified to IEC EN 60320-1, UL 60320-1, and CSA C22.2 No. 60320-1 standards.

Durable Professional Construction

Built for harsh environments, the connector features a heavy-duty sealed housing, UV-resistant high-impact materials, Neutrik's robust locking bushing, and exceptional cable retention. The screw terminal design supports large power cables such as H07RN-F 3G2.5 and SOOW 12/3, making it ideal for touring, rental, and permanent installations.

Applications

•
  Professional stage lighting

•
  Live sound systems

•
  Broadcast equipment

•
  Touring and rental applications

•
  Outdoor event power distribution

•
  Professional AV installations
