Overview

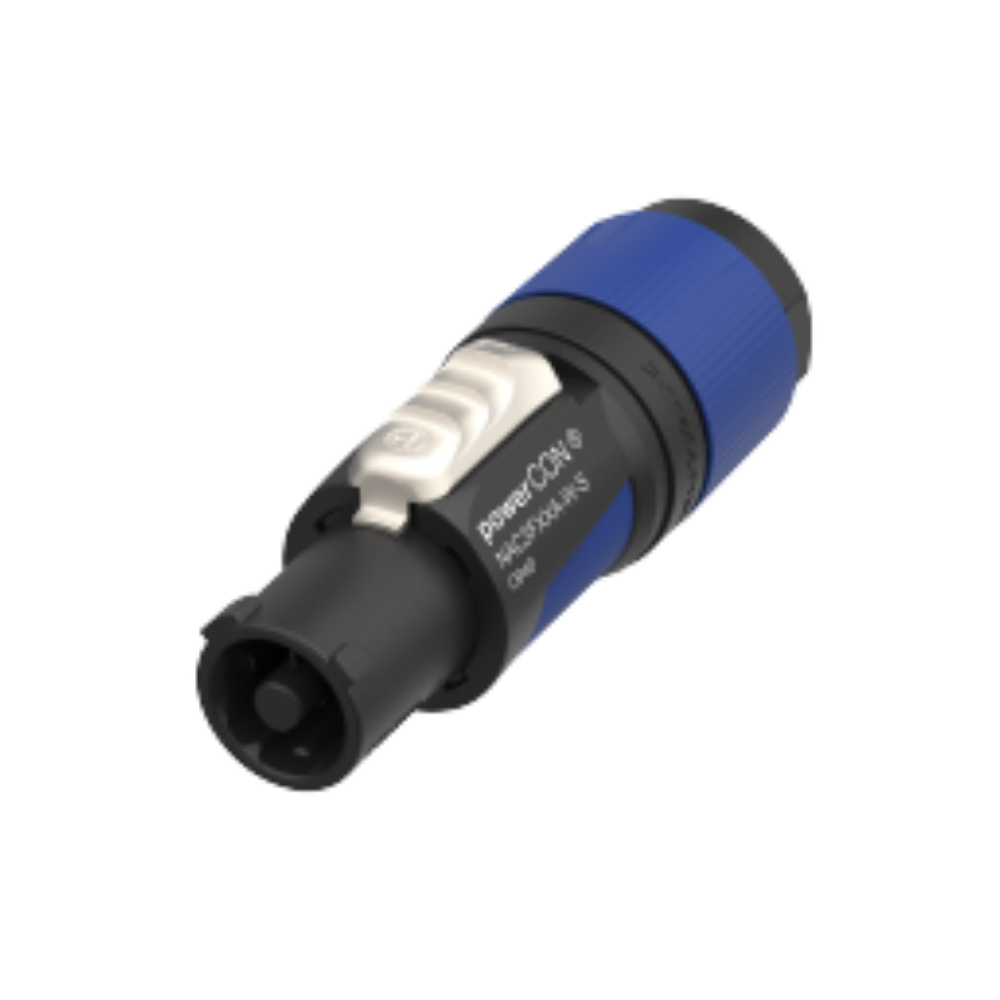

The Neutrik NAC3FXXA-W-S is a powerCON XX female locking AC mains cable connector designed for professional power distribution systems. Color-coded blue and keyed for Power IN, it provides a secure single-phase power connection with screw terminals and Circuit Breaking Capability when used with compatible powerCON XX series chassis receptacles. It is ideal for lighting, broadcast, AV, and touring applications.

Professional Power Performance

Rated for 16 A at 250 V AC (20 A at 127 V AC for UL/cUL), the NAC3FXXA-W-S supports Circuit Breaking Capability (CBC), allowing safe connection and disconnection under load when mated with compatible powerCON XX receptacles. Its twist-lock mechanism ensures a secure connection, preventing accidental unplugging during operation.

Durable Professional Construction

The connector features an ergonomic two-component housing with improved grip, a robust locking bushing, and integrated strain relief for cable diameters from 6 mm to 12 mm. High-quality silver-plated contacts, screw terminal wiring, and rugged construction ensure dependable long-term performance in demanding professional environments.

Applications

•
  Professional stage lighting

•
  Live sound systems

•
  Broadcast equipment

•
  Touring and rental systems

•
  Power distribution cables

•
  Professional AV installations
