Overview

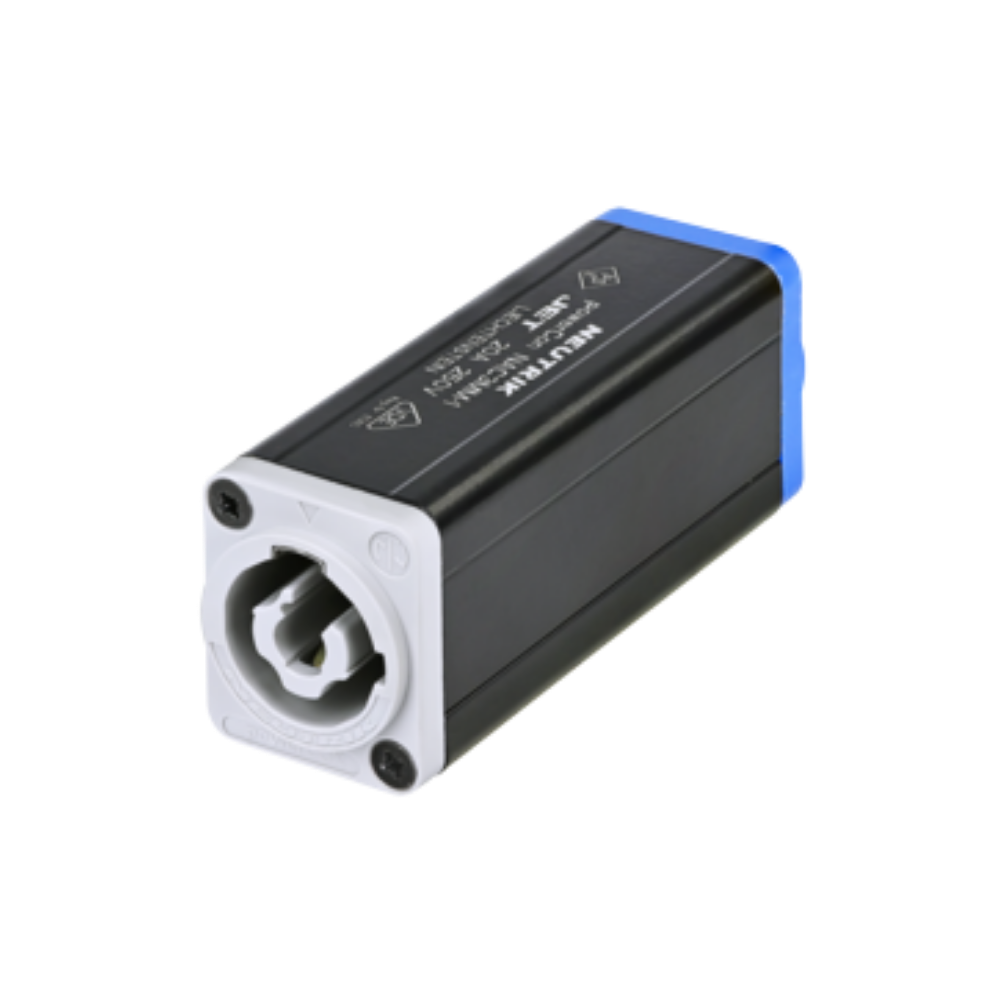

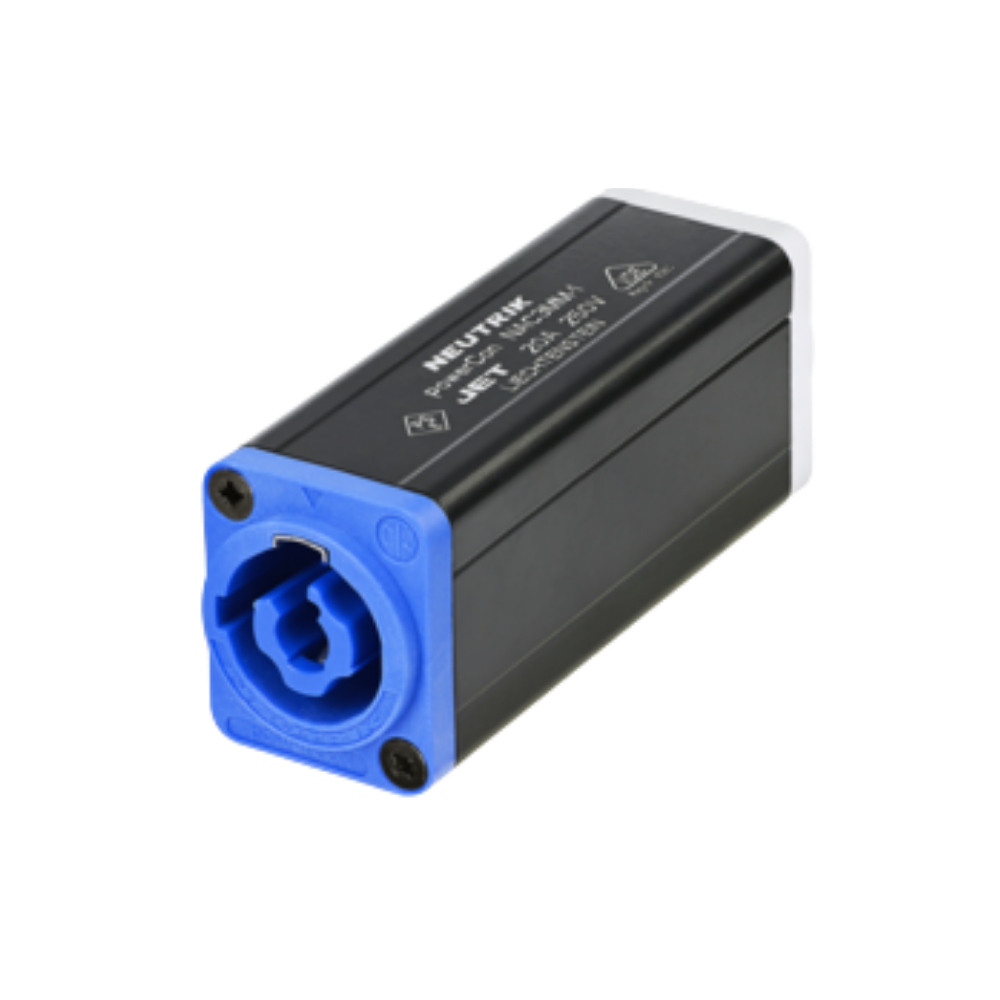

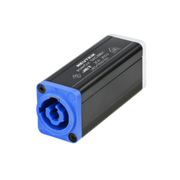

The Neutrik NAC3MM-1 is a powerCON XX inline cable coupler designed to link powerCON NAC3FXXA (Power IN) and powerCON NAC3FXXB (Power OUT) cable connectors. It provides a secure locking connection for extending professional AC power cables used in entertainment, broadcast, and industrial applications.

Professional Power Performance

Rated for 16 A at 250 V AC, the NAC3MM-1 provides reliable single-phase AC power transmission through line, neutral, and pre-mating ground contacts. Its Quick Lock mechanism ensures a secure connection between cable assemblies. This connector does not have Circuit Breaking Capability (CBC) and must not be connected or disconnected under load. It provides IP20 protection when mated.

Durable Professional Construction

Engineered for demanding professional environments, the coupler features a rugged polyamide housing, silver-plated bronze contacts, and a durable steel locking mechanism. Designed for more than 1,000 mating cycles, it delivers dependable long-term performance in touring, rental, broadcast, and fixed installations.

Applications

•
  Professional stage lighting

•
  Live sound systems

•
  Broadcast equipment

•
  Touring and rental systems

•
  Power cable extensions

•
  Professional AV installations
