Overview

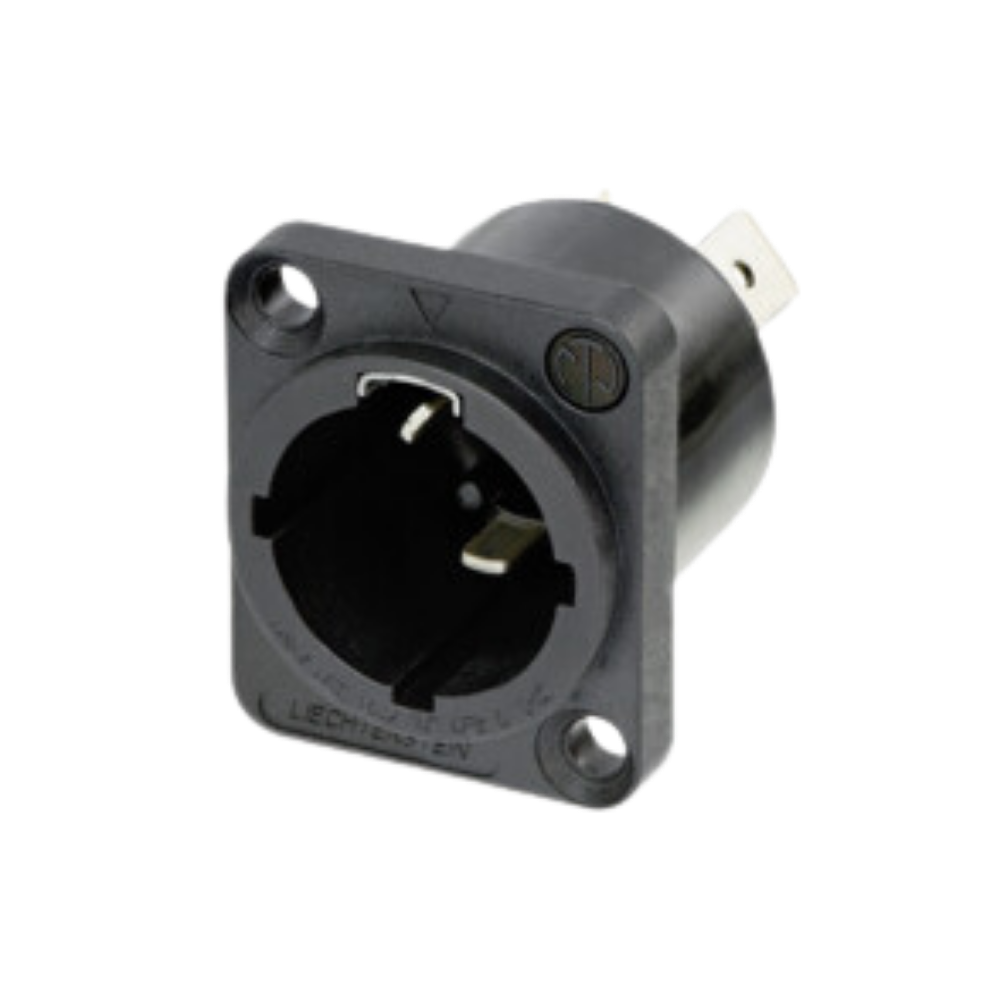

The Neutrik NAC3MPX-WOT-TOP is a powerCON TRUE1 TOP male chassis connector designed for professional AC power distribution in demanding indoor and outdoor environments. Configured as a Power OUT appliance outlet, this version is supplied without terminals (WOT), allowing equipment manufacturers to implement custom internal wiring and termination methods.

Professional Power Performance

Rated for 16 A at 250 V AC (20 A UL), the NAC3MPX-WOT-TOP features Circuit Breaking Capability (CBC), allowing safe connection and disconnection under load. When used with the appropriate sealing cover, it provides IP65 protection in the mated condition, making it suitable for professional lighting, broadcast, entertainment, and industrial applications.

Durable Professional Construction

Engineered for long-term reliability, the connector features a rugged D-size chassis design, UV-resistant high-impact housing, silver-plated contacts, and a secure twist-lock mechanism. Its terminal-free configuration offers maximum flexibility for OEM equipment manufacturers while maintaining the durability of the powerCON TRUE1 TOP series.

Applications

•
  Professional stage lighting

•
  Broadcast equipment

•
  Live sound systems

•
  Outdoor AV installations

•
  OEM equipment manufacturing

•
  Power distribution systems
