Overview

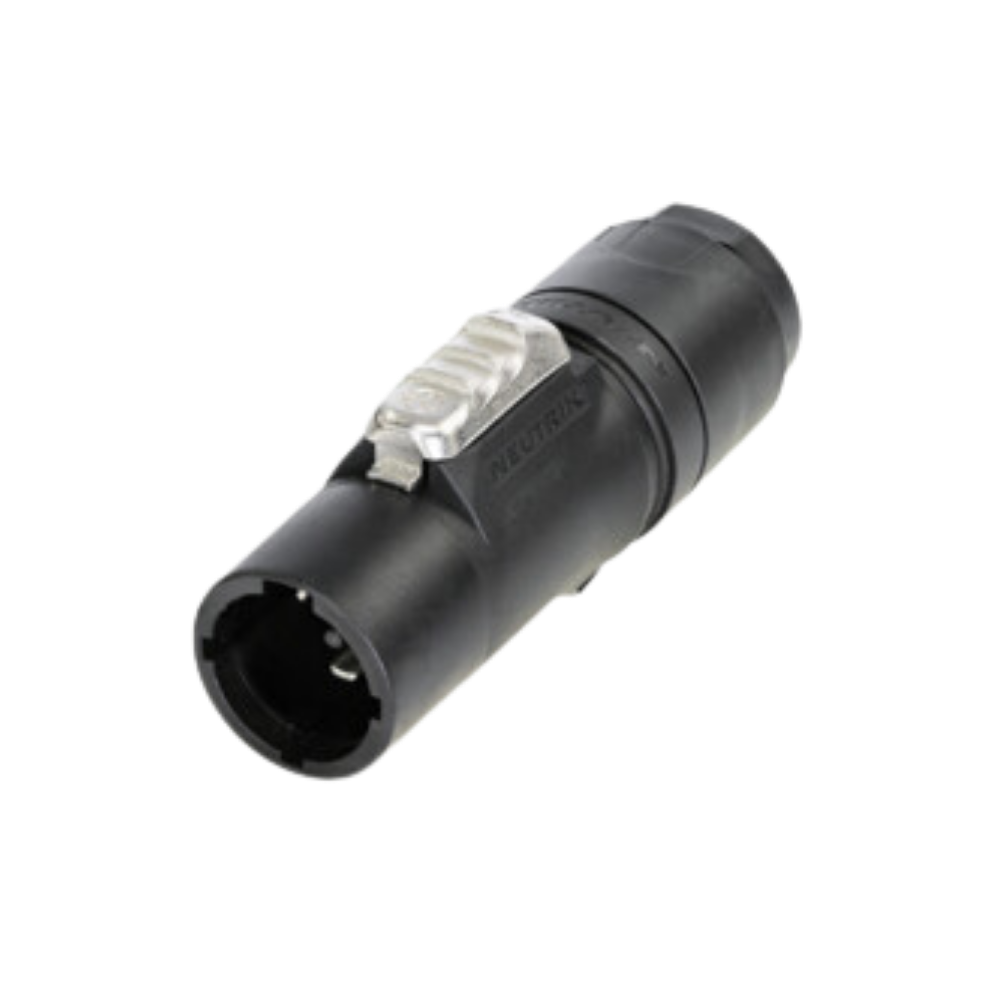

The Neutrik NAC3MX-W-TOP-L is a powerCON TRUE1 TOP male cable connector designed for professional AC power connections using large-diameter power cables. Keyed for Power OUT, it provides a secure locking single-phase power connection with screw terminals and is the direct predecessor to the NAC3M-TRUE1-L. It is specifically designed for cable diameters from 10 mm to 16 mm, making it ideal for heavy-duty outdoor power applications.

Professional Power Performance

Rated for 16 A at 250 V AC (20 A USA), the NAC3MX-W-TOP-L features Circuit Breaking Capability (CBC), allowing safe connection and disconnection under load. When fully mated, it provides IP65 protection against dust and water ingress, ensuring reliable operation in demanding entertainment, broadcast, and outdoor environments.

Durable Professional Construction

Built for harsh environments, the connector features a UV-resistant high-impact housing, rugged locking bushing, robust cable strain relief, and screw terminal wiring for secure cable termination. Its heavy-duty construction supports large power cables and delivers long-term reliability in touring, rental, and permanent installations.

Applications

•
  Professional stage lighting

•
  Live sound systems

•
  Broadcast equipment

•
  Touring and rental applications

•
  Outdoor event power distribution

•
  Professional AV installations
