Overview

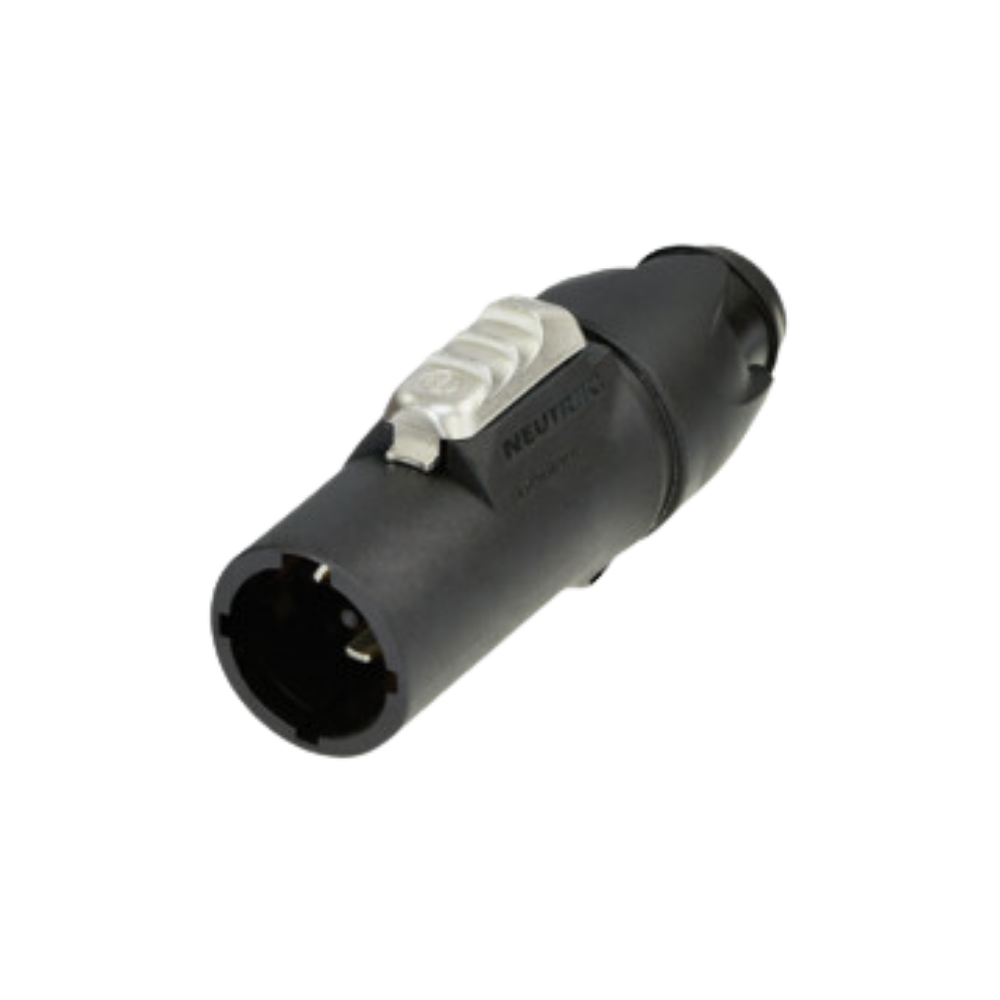

The Neutrik NAC3MX-W-TOP is a powerCON TRUE1 TOP male cable connector designed for professional AC power connections in demanding indoor and outdoor environments. Keyed for Power OUT, it provides a secure locking single-phase power connection with screw terminals and is the direct predecessor to the NAC3M-TRUE1-S.

Professional Power Performance

Rated for 16 A at 250 V AC (20 A USA), the NAC3MX-W-TOP features Circuit Breaking Capability (CBC), allowing safe connection and disconnection under load. When fully mated, it provides IP65 protection against dust and water ingress, making it ideal for professional lighting, audio, and power distribution systems.

Durable Professional Construction

Engineered for harsh environments, the connector features a heavy-duty sealed housing, UV-resistant high-impact materials, Neutrik's locking bushing with robust cable retention, and screw terminal wiring. Its rugged construction ensures dependable performance in touring, rental, and permanent installations.

Applications

•
  Professional stage lighting

•
  Live sound systems

•
  Broadcast equipment

•
  Touring and rental applications

•
  Outdoor event power distribution

•
  Professional AV installations
