Overview

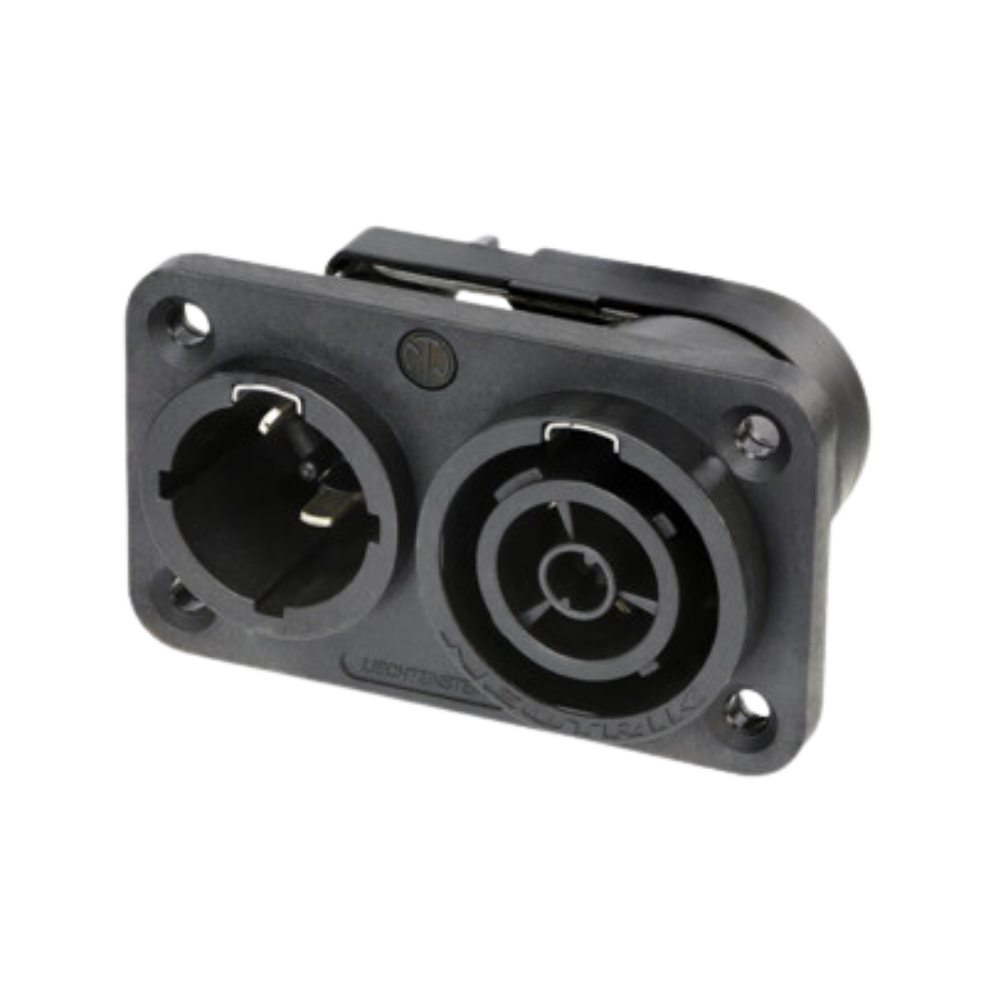

The Neutrik NAC3PX-TOP is a powerCON TRUE1 TOP combination chassis connector designed for professional AC power distribution in demanding indoor and outdoor environments. It combines both Power IN and Power OUT functions in a single D-size panel connector, making it ideal for compact power distribution panels and professional AV equipment. It features 1/4-inch flat tab terminals for quick installation.

Professional Power Performance

Rated for 16 A at 250 V AC (20 A UL), the NAC3PX-TOP features Circuit Breaking Capability (CBC), allowing safe connection and disconnection under load. When used with the optional SCNAC-04 sealing cover, it provides IP65 and UL50E Type 4 protection in the mated condition or with the protective cap closed, ensuring reliable performance in harsh outdoor environments.

Durable Professional Construction

Built for professional touring, broadcast, and industrial applications, the connector features a UV-resistant high-impact housing, silver-plated contacts, stainless steel locking components, and Neutrik's proven twist-lock mechanism. The rugged construction is designed for long service life and dependable operation in demanding environments.

Applications

•
  Professional stage lighting

•
  Broadcast equipment

•
  Live sound systems

•
  Outdoor AV installations

•
  Touring and rental systems

•
  Power distribution panels
